Peabody Engineering ShoPro SP100 Pressure Transducer Level Sensor with Junction Box, 2" MNPT (14" to 108")

Description

Peabody Engineering ShoPro SP100 pressure transducer level sensor with junction box and 2" MNPT threads, 4-20mA input and output, for a 14" to 108" range.

Choose the wetted material combination: PVC, PPL, PVDF or SST, each with Kalrez and TFE. The ShoPro SP100 liquid level display/controller is also available as a separate listing.

Key Features

• Pressure Transducer: Level sensing by pressure
• Junction Box: Supplied with junction box
• 2" MNPT Threads: Threaded tank connection
• Four Material Options: PVC, PPL, PVDF or SST with Kalrez/TFE

Specifications

• Range: 14" to 108"
• Input and Output: 4-20mA
• Connection: 2" MNPT
• Materials: PVC/Kalrez/TFE, PPL/Kalrez/TFE, PVDF/Kalrez/TFE, SST/Kalrez/TFE
• Manufacturer Part Numbers: 24-35241 (PVC/Kalrez/TFE); 24-35242 (PPL/Kalrez/TFE); 24-35243 (PVDF/Kalrez/TFE); 24-35244 (SST/Kalrez/TFE)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

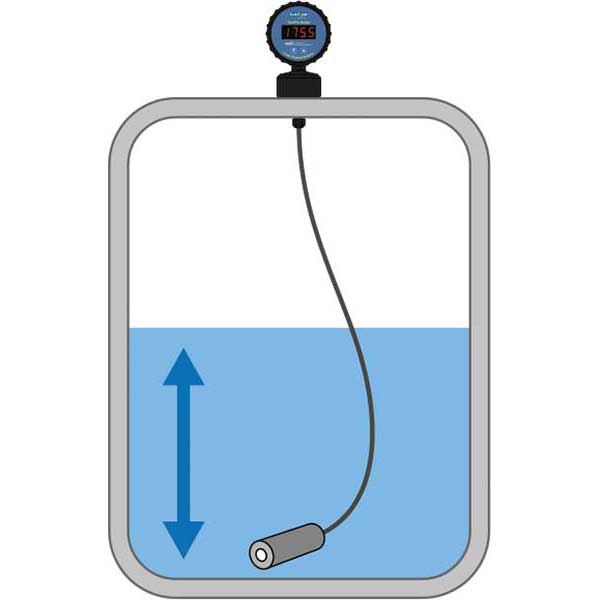

• Continuous tank level monitoring

Frequently Asked Questions

What range does it cover?
14" to 108", with 4-20mA input and output.

Is there a matching display/controller?

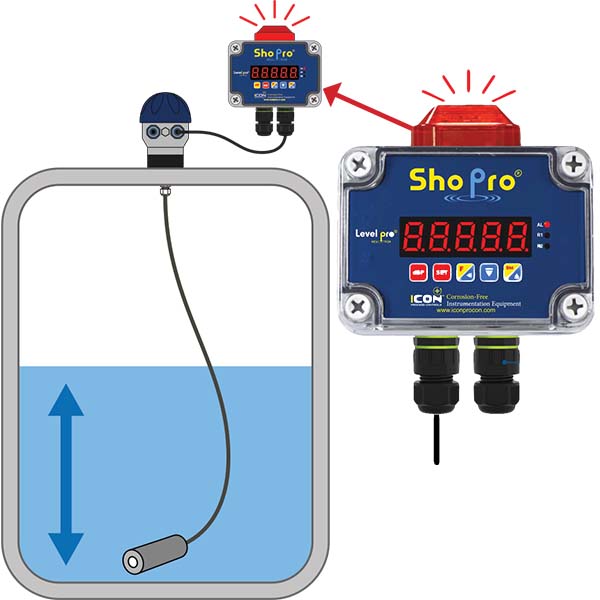

Yes. The ShoPro SP100 liquid level display/controller with alarm (PN 24-36536) is listed separately.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Level and Leak Detection Products

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
