Peabody Engineering ShoPro SP100 Liquid Level LED Display/Controller with Alarm (MPN: 24-36536)

Description

The Peabody Engineering ShoPro SP100 is a wall and pipe mounted liquid level display and controller with an audible and visual alarm, 24 VDC power supply, IP68 and NEMA-4X enclosure, and a 4-20mA output for connecting to a pump or other process equipment.

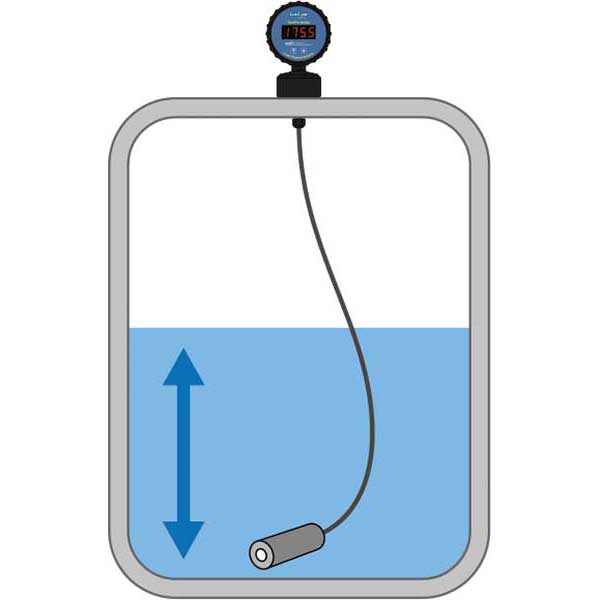

It works with Peabody pressure transducer, ultrasonic and radar level transmitters, each sold separately. Pair it with a pressure transducer level sensor with junction box for a complete level control and monitoring system.

Key Features

• Display and Controller: Wall or pipe mounted liquid level display/controller
• Alarm: Audible and visual alarm
• Enclosure: IP68 and NEMA-4X
• 4-20mA Output: For pumps or other process equipment

Specifications

• Power: 24 VDC (120 VAC transducer available at additional cost)
• Output: 4-20mA
• Enclosure: IP68 and NEMA-4X
• Compatible Sensors: Peabody pressure transducer, ultrasonic and radar level transmitters (sold separately)
• Manufacturer Part Numbers: 24-36536 (ShoPro SP100 liquid level display/controller with alarm)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Remote level display and control for chemical tanks
• Pump control from a 4-20mA level signal

Frequently Asked Questions

Is a level sensor included?
No. The sensor is sold separately. The controller works with Peabody pressure transducer, ultrasonic and radar level transmitters.

Can it run on 120 VAC?
The standard power supply is 24 VDC. Peabody offers a 120 VAC transducer at additional cost; contact Tank Supply Direct for a quote.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Level and Leak Detection Products

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
