Peabody Engineering Float Level Gauges for Gemini Cylindrical Dual Containment Tanks

Description

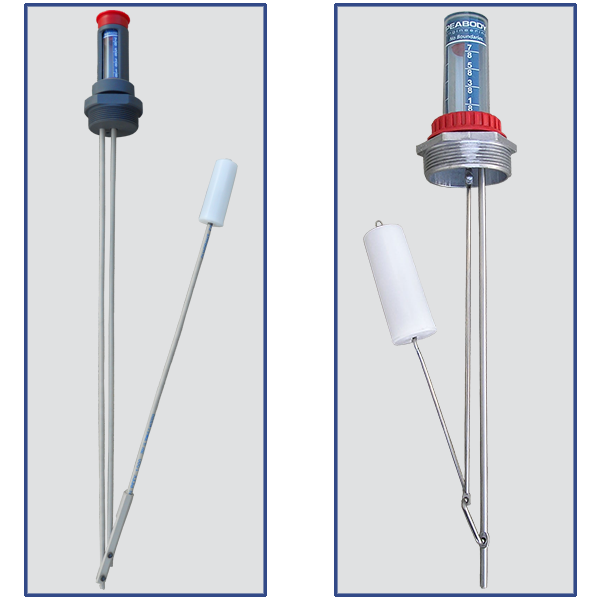

Peabody Engineering float level gauges are sized to each Gemini cylindrical dual containment tank. A float rides on the liquid inside the tank and the indicator on top shows the level, with no power needed. Choose your Gemini tank size and the gauge material and thread: SST/PE or PVDF, with a 2" NPT or a 3/4" or 1" NPT connection.

Choose the material that suits the chemical you store, and match the thread to the fitting on your tank. Contact Tank Supply Direct if you are unsure which to pick.

Key Features

• Sized by Tank: One gauge length for each Gemini cylindrical tank size
• Two Materials: SST/PE or PVDF
• Two Connections: 2" NPT, or 3/4" / 1" NPT
• No Power Needed: Mechanical float with a top indicator

Specifications

• Manufacturer Part Numbers: Gemini 15: 02-1083, 02-32750, 02-1082, 02-32761; Gemini 20: 02-1085, 02-32751, 02-1084, 02-32762; Gemini 40 (Dome & Flat): 02-1089, 02-32752, 02-1088, 02-32763; Gemini 62: 02-1093, 02-32753, 02-1092, 02-32764; Gemini 65: 02-30790, 02-32754, 02-30792, 02-32765; Gemini 90: 02-30791, 02-32755, 02-30793, 02-32766; Gemini 120: 02-1081, 02-32756, 02-1080, 02-32767; Gemini 160: 02-29965, 02-32757, 02-29966, 02-32768; Gemini 220: 02-25760, 02-32758, 02-26532, 02-32769; Gemini 320: 02-25761, 02-32759, 02-26533, 02-32770; Gemini 420: 02-35615, 02-35616, 02-35617, 02-35618; Gemini 500: 02-25762, 02-32760, 02-26534, 02-32771 (order of each list: SST/PE 2" NPT, SST/PE 3/4"/1" NPT, PVDF 2" NPT, PVDF 3/4"/1" NPT)
• Fits: Peabody Gemini cylindrical dual containment tanks
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Visual level indication on Gemini chemical tanks

Frequently Asked Questions

Which gauge do I need?
Choose the Gemini cylindrical tank size you have, then the material (SST/PE or PVDF) and the thread size of the tank fitting the gauge will go in.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Level Gauge - Manual Float

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
