Peabody Engineering FRP Covers, Hinges and Handles for FRP Open Top Rectangular Tanks (50 to 955 Gallon)

Description

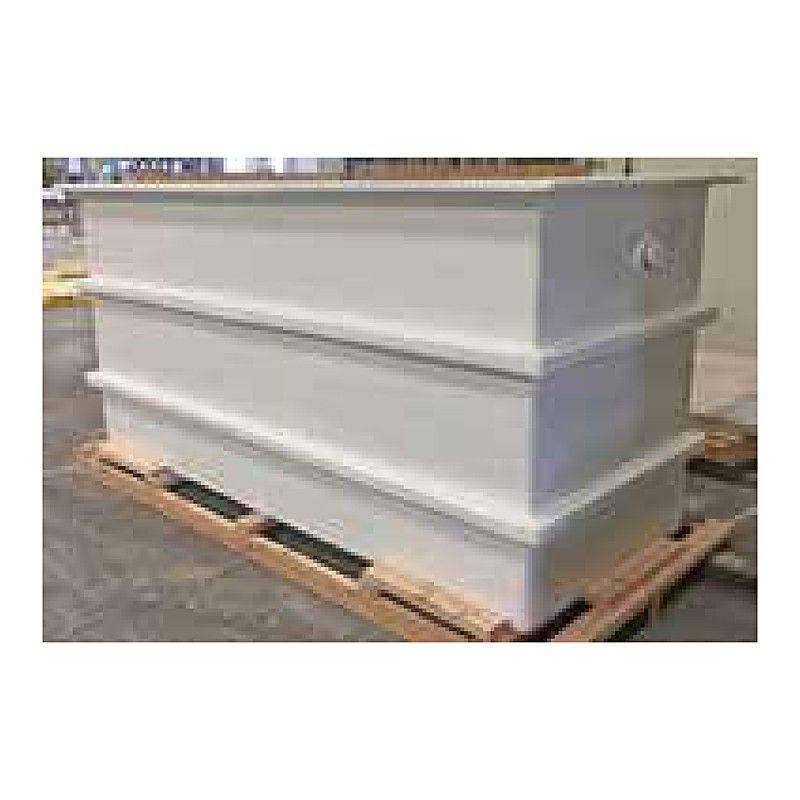

Peabody Engineering fiberglass (FRP) covers for Peabody FRP open top rectangular tanks from 50 to 955 gallons. Each size is available as a shoe-box cover or a bolted flat cover in polyester or vinylester resin, with an optional hinge. A handle that fits all sizes is also available.

Choose your tank size, then the cover style and resin. Hinges can be used on shoe-box covers or bolted flat covers. Other sizes are available; contact Tank Supply Direct for pricing.

Key Features

• Two Cover Styles: Shoe-box cover or bolted flat cover
• Two Resins: Polyester or vinylester
• Optional Hinge: Works with shoe-box or bolted flat covers
• Handle: One handle part fits all tank sizes

Specifications

• Fits: Peabody FRP open top rectangular tanks: 50 gal (24" x 24" x 24"), 130 gal (36" x 36" x 24"), 185 gal (36" x 36" x 36"), 235 gal (48" x 48" x 24"), 400 gal (36" x 72" x 36"), 475 gal (48" x 48" x 48"), 535 gal (36" x 96" x 36"), 715 gal (48" x 96" x 36"), 955 gal (48" x 96" x 48")
• Manufacturer Part Numbers: 50 gal: 02-33992 (polyester shoe-box), 02-33955 (polyester bolted flat), 02-34077 (vinylester shoe-box), 02-34086 (vinylester bolted flat), 02-33964 (hinge); 130 gal: 02-33993 (polyester shoe-box), 02-33956 (polyester bolted flat), 02-34078 (vinylester shoe-box), 02-34087 (vinylester bolted flat), 02-33965 (hinge); 185 gal: 02-33994 (polyester shoe-box), 02-33957 (polyester bolted flat), 02-34079 (vinylester shoe-box), 02-34088 (vinylester bolted flat), 02-33966 (hinge); 235 gal: 02-33995 (polyester shoe-box), 02-33958 (polyester bolted flat), 02-34080 (vinylester shoe-box), 02-34089 (vinylester bolted flat), 02-33967 (hinge); 400 gal: 02-33996 (polyester shoe-box), 02-33959 (polyester bolted flat), 02-34081 (vinylester shoe-box), 02-34090 (vinylester bolted flat), 02-33968 (hinge); 475 gal: 02-33997 (polyester shoe-box), 02-33960 (polyester bolted flat), 02-34082 (vinylester shoe-box), 02-34091 (vinylester bolted flat), 02-33969 (hinge); 535 gal: 02-33998 (polyester shoe-box), 02-33961 (polyester bolted flat), 02-34083 (vinylester shoe-box), 02-34092 (vinylester bolted flat), 02-33970 (hinge); 715 gal: 02-33999 (polyester shoe-box), 02-33962 (polyester bolted flat), 02-34084 (vinylester shoe-box), 02-34093 (vinylester bolted flat), 02-33971 (hinge); 955 gal: 02-34000 (polyester shoe-box), 02-33963 (polyester bolted flat), 02-34085 (vinylester shoe-box), 02-34094 (vinylester bolted flat), 02-33972 (hinge); 02-33973 (handle, all sizes)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Covering a Peabody FRP open top rectangular tank

Frequently Asked Questions

Can the hinge be used with either cover?
Yes. Peabody hinges can be used on shoe-box covers or bolted flat covers.

Do you have other sizes?
Peabody offers other sizes on request. Contact Tank Supply Direct for pricing.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Open Top Rectangular Tanks

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Peabody Engineering's published warranty is a full 3-year warranty on its standard tanks and a full 5-year warranty on its heavy-duty tanks, and it does not apply to special applications such as sodium hypochlorite and bio-diesel. Peabody does not state a separate warranty term for this item. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com. Source: Peabody Engineering FAQs
