80/120 Gallon Rhino Tuff Tanks Complete Gravity Feed System (MPN: RTT-6320)

Description

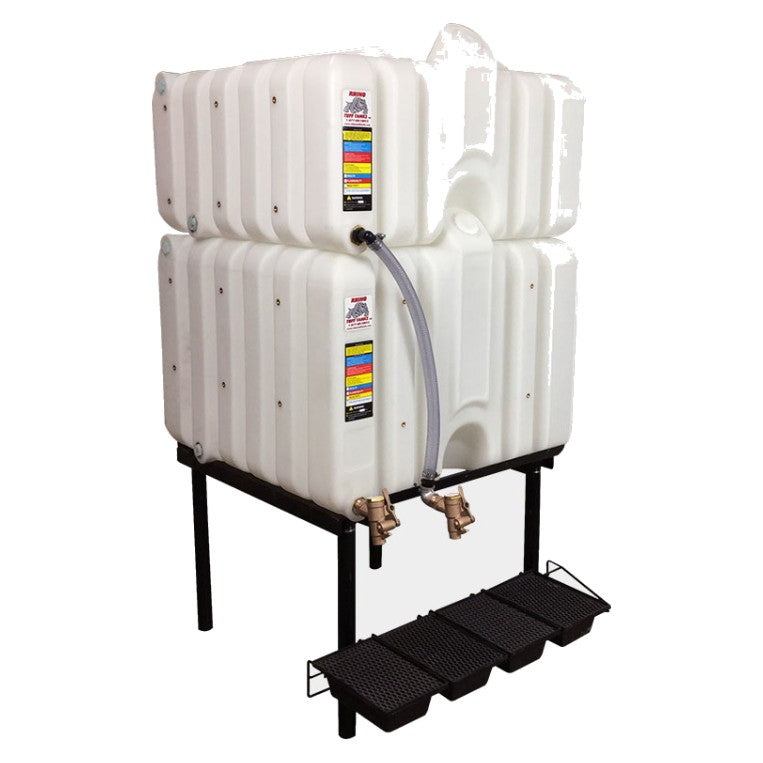

The Rhino 80/120 Gallon Gravity Feed Tank System (Model RTT-6320) is a durable and versatile fluid storage solution featuring one 80-gallon and one 120-gallon stackable tank mounted on a sturdy tank stand with 24" legs. Designed for efficient gravity-fed dispensing, this system suits mobile and stationary applications requiring flexible tank configurations.

Constructed from natural virgin high-density polyethylene, these tanks provide excellent chemical resistance and long-lasting durability. Features such as molded-in brass inserts, site gauges, and multiple access openings ensure easy operation and maintenance. The included drip tray kit and brass spring valves enhance safety and cleanliness during use.

Key Features

• Capacity: 1 x 80 Gallon Tank and 1 x 120 Gallon Tank (200 Gallons total).
• Stackable Tanks: Interlocking top and bottom ridges secure stacking without the need for conversion brackets.
• Tank Stand with 24" Legs: Offers solid support and optimal height for gravity feed.
• Drip Tray Kit: Included to manage spills and keep the workspace clean.
• Brass Spring Valves: Durable valves provide reliable fluid control.
• Accessory Package: Complete mounting and installation hardware included.
• Multiple Openings: 2" top opening for pump or vent application, 1" opening for desiccant breather or remote fill, and convenient 2" center fill opening.
• Molded-in Brass Inserts: Six brass inserts allow secure side mount pump plate attachment.
• Mold-in Graphic and Identification Label: For easy product identification.
• Unique Drain: Industry’s only molded-in brass 1" NPT bushing at the drain opening.
• Site Gauge: Molded-in site gauge with semi-transparent tank material eliminates need for external gauges.
• Natural Virgin HDPE Construction: Guarantees chemical resistance and long service life.
• Stackable in Any Combination: No conversion brackets necessary.
• Standard Footprint: Compact 3' x 3' footprint suitable for versatile installation.


Specifications

• Model: RTT-6320
• Capacity: 1 x 80 Gallon Tank and 1 x 120 Gallon Tank (200 Gallons total)
• Assembled Dimensions: 36" L x 42" W x 74" H
• Top Opening: 2" for pump or vent application
• Additional Openings: 1" for desiccant breather or remote fill, 2" center fill opening
• Stacking System: Interlocking ridges for secure stacking
• Brass Inserts: Six molded-in brass inserts for pump plate attachment
• Drain: Molded-in brass 1" NPT bushing
• Site Gauge: Molded-in, semi-transparent tank material
• Material: Natural virgin high density polyethylene
• Footprint: Standard 3' x 3' footprint

• Shipping Weight: 245 lbs
• Shipping Dimensions: 44 x 36 x 56 in
• Number of Tanks: 2
• Two (2) Stackable Tanks: One (1) 80 Gallon and One (1) 120 Gallon
• Manufacturer: Rhino Tuff Tanks - Maple Lake, MN
• Manufacturer Part Number: RTT-6320
• Ships From: Maple Lake, MN

Applications

• Gravity-feed storage and dispensing of oils and lubricants in shops and service bays
• Fleet, farm and industrial fluid management
• Mobile or stationary setups where floor space is limited

Frequently Asked Questions

What are the dimensions?
Assembled Dimensions: 36" L x 42" W x 74" H; Footprint: Standard 3' x 3' footprint.

How much does it hold?
Capacity: 1 x 80 Gallon Tank and 1 x 120 Gallon Tank (200 Gallons total).

How much does it weigh?
Shipping Weight: 245 lbs.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 2-5 Weeks, and it ships from Rhino Tuff Tanks in Maple Lake, Minnesota. Shipping is calculated at checkout.

What warranty does it come with?
Per Rhino Tuff Tanks: it carries a Limited Lifetime Warranty (Gravity Feed Systems). Coverage is against manufacturing defects.

Who makes it?
Rhino Tuff Tanks of Maple Lake, Minnesota (part number RTT-6320). Tank Supply Direct sells and supports it.

Manufacturer Documents

• Rhino Tuff Tanks product page - 80/120 Gallon Gravity Feed Tank Package
• RTT Spec Sheet - 500389
• Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions
• Rhino Tuff Tanks 2024 product catalog (PDF)

Shipping and Warranty

• Manufacture Lead Time: 2-5 Weeks
• Ships From (State): MN

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty period - Limited Lifetime Warranty (Rhino Tuff Tanks warranty period for Gravity Feed Systems).

Rhino Tuff Tanks Warranty Policy
Rhino Tuff Tanks (RTT) stands behind all of its products and will repair or replace, at its discretion, any product found to be defective due to a manufacturing defect. Items sold, but not manufactured by Rhino Tuff Tanks (including materials, equipment, or components such as pumps, hoses, valves, etc.) are subject to the warranty, if any, of the original manufacturer. Rhino Tuff Tanks will provide the purchaser with reasonable assistance in making any claim for breach of these warranties; however, if the original manufacturer denies such warranty claims, Rhino Tuff Tanks has no additional liability. Rhino Tuff Tanks is not responsible for fluid loss and/or associated cleanup costs. The warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments. Warranties and returns will not be honored without the original receipt of purchase and images of the damaged or defective product. Warranties do not apply to floor or display models, out-of-box models, and close-out or discontinued items.

For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com. Source: Rhino Tuff Tanks warranty page
