190 Gallon Rhino Tuff Tanks Double Wall Granby Tank (MPN: RTT-1190)

Description

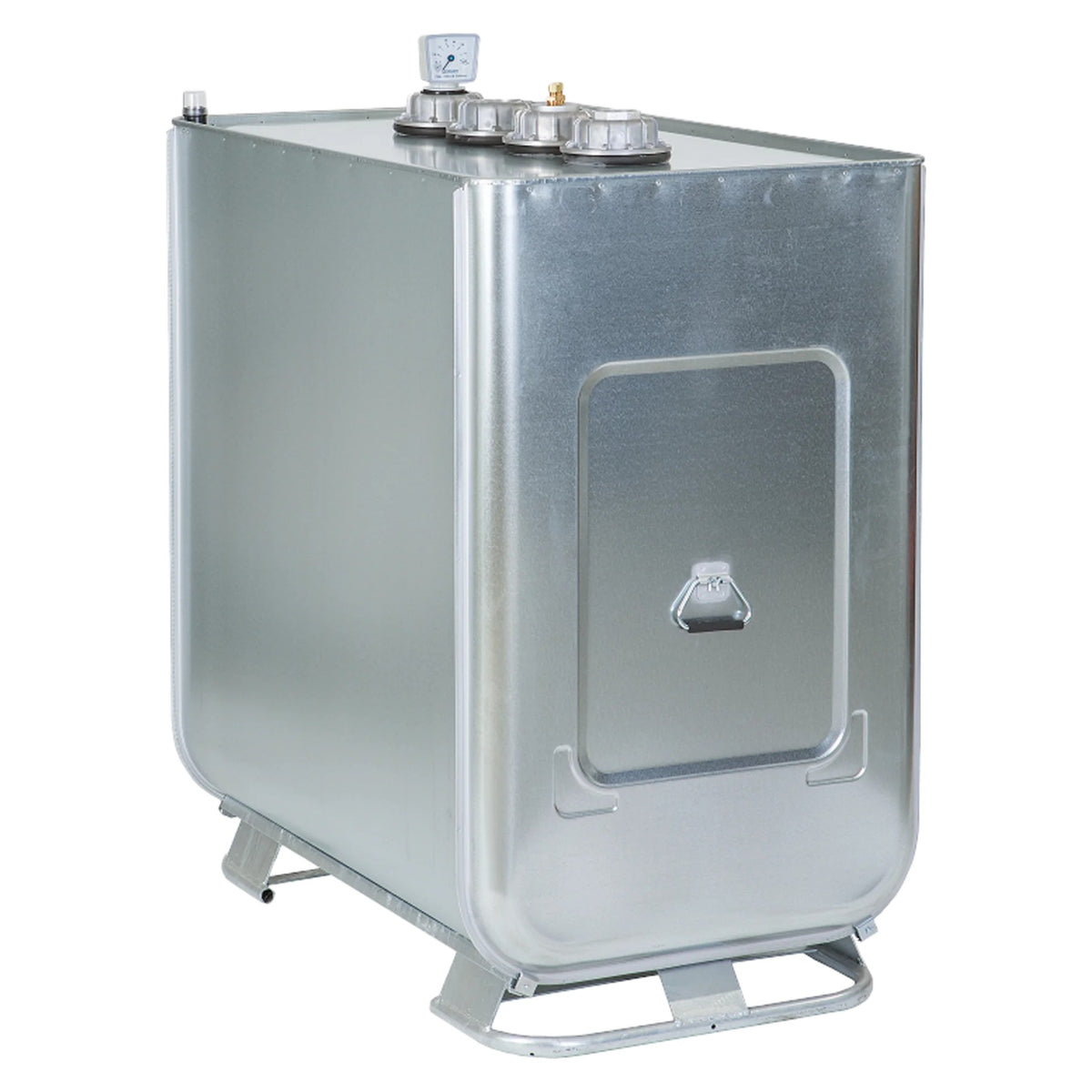

The Granby Double Wall Tank (MPN: RTT-1190) offers a robust solution for lubricant and waste oil storage with integrated secondary containment. Featuring a fluorinated internal HDPE tank housed inside a galvanized steel external tank, this unit ensures durability, chemical resistance, and environmental protection in one compact package.

Designed for tight spaces, the tank fits through doorways as narrow as 28" and in rooms with headroom down to 60". The sturdy galvanized base provides stable support, while the top mount bracket kit allows for easy installation of fill and dispensing equipment.

Safety and compliance are paramount with the Granby tank. It includes a visual leak indicator for easy monitoring of the primary tank’s integrity, cast aluminum connection fittings for enhanced durability, and meets UL-2258 and ULC-S670 certification standards.

Key Features

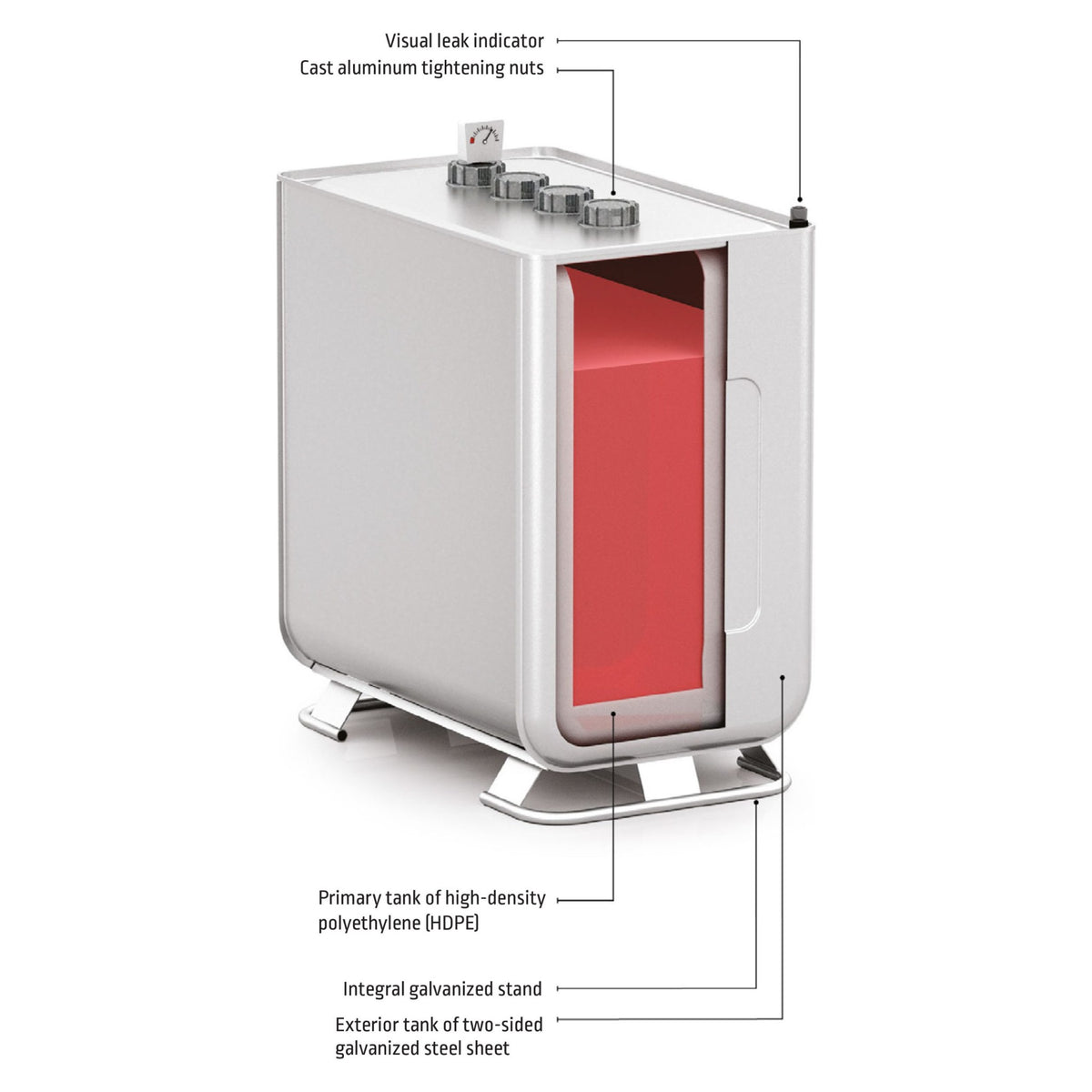

• Double Wall Construction: Primary fluorinated HDPE tank inside galvanized steel secondary containment.
• Visual Leak Indicator: Provides easy monitoring of the primary tank’s integrity.
• Fluorination Treatment: Exclusive to Granby 2-in-1 tanks, helps reduce oil odors.
• Durable Connection Fittings: Cast aluminum fittings offer enhanced torque resistance and improved sealing.
• Certified Safety: UL-2258 and ULC-S670 certifications ensure compliance with industry standards.
• Space-Efficient Design: Fits through 28” doorways and requires only 60” headroom.
• 30-Year Limited Warranty: Long-term peace of mind with extensive warranty coverage.


Specifications

• Weight: 150 lbs
• Dimensions: 43.125″ L × 27.5″ W × 46.25″ H

• Manufacturer: Rhino Tuff Tanks - Maple Lake, MN
• Manufacturer Part Number: RTT-1190
• Ships From: Maple Lake, MN

Accessories Included

• 2” NPT Galvanized Steel Fill Pipe Adapter
• Low Pressure Vent and Overfill Protection Alarm
• Oil Level Gauge
• Oil Burner Supply Duplex Bushing with Tube Adapters

Applications

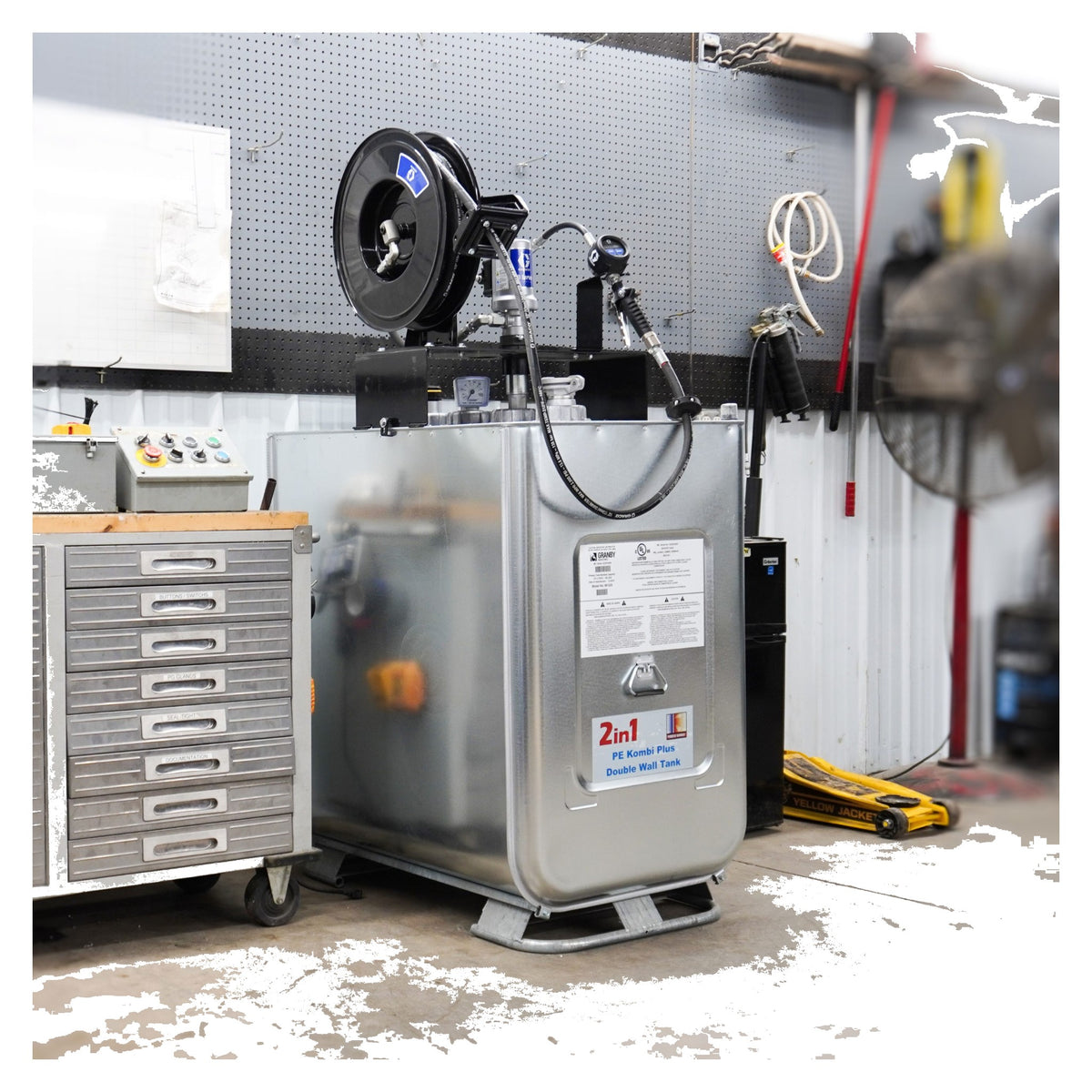

• Lubricant and waste oil storage with built-in secondary containment
• Shops and service bays with tight spaces and standard doorways

Frequently Asked Questions

What are the dimensions?
Dimensions: 43.125″ L × 27.5″ W × 46.25″ H.

How much does it weigh?
Weight: 150 lbs.

What's included?
2” NPT Galvanized Steel Fill Pipe Adapter; Low Pressure Vent and Overfill Protection Alarm; Oil Level Gauge; Oil Burner Supply Duplex Bushing with Tube Adapters.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 2-5 Weeks, and it ships from Rhino Tuff Tanks in Maple Lake, Minnesota. Shipping is calculated at checkout.

What warranty does it come with?
Per Rhino Tuff Tanks: it carries a Limited Lifetime Warranty (Tanks). Coverage is against manufacturing defects.

Who makes it?
Rhino Tuff Tanks of Maple Lake, Minnesota (part number RTT-1190). Tank Supply Direct sells and supports it.

Manufacturer Documents

• Rhino Tuff Tanks product page - 190 Gal Double Wall Granby Tank
• Rhino Tuff Tanks 2024 product catalog (PDF)

Shipping and Warranty

• Manufacture Lead Time: 2-5 Weeks
• Ships From (State): MN

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty period - Limited Lifetime Warranty (Rhino Tuff Tanks warranty period for Tanks).

Rhino Tuff Tanks Warranty Policy
Rhino Tuff Tanks (RTT) stands behind all of its products and will repair or replace, at its discretion, any product found to be defective due to a manufacturing defect. Items sold, but not manufactured by Rhino Tuff Tanks (including materials, equipment, or components such as pumps, hoses, valves, etc.) are subject to the warranty, if any, of the original manufacturer. Rhino Tuff Tanks will provide the purchaser with reasonable assistance in making any claim for breach of these warranties; however, if the original manufacturer denies such warranty claims, Rhino Tuff Tanks has no additional liability. Rhino Tuff Tanks is not responsible for fluid loss and/or associated cleanup costs. The warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments. Warranties and returns will not be honored without the original receipt of purchase and images of the damaged or defective product. Warranties do not apply to floor or display models, out-of-box models, and close-out or discontinued items.

For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com. Source: Rhino Tuff Tanks warranty page
