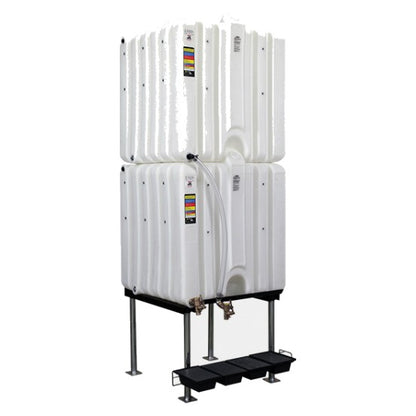

180/180 Gallon Rhino Tuff Tanks Complete Gravity Feed Tank System (MPN: RTT-6880)

Description

The Rhino 180/180 Gallon Gravity Feed Tank System combines two 180-gallon tanks to provide a substantial 360-gallon fluid storage capacity in a compact, stackable design. This system is engineered for efficient gravity-fed dispensing, making it ideal for agricultural, commercial, and industrial fluid management applications.

Constructed from natural virgin high-density polyethylene (HDPE), the tanks offer excellent chemical resistance and durability. The system features brass spring valves, a drip tray kit, and a sturdy 24" leg tank stand to support safe and reliable dispensing. Molded-in brass inserts enable easy mounting of pump plates, while integrated site gauges provide clear fluid level visibility.

Key Features

• 360-Gallon Capacity: Two 180-gallon stackable tanks combined.
• Complete Kit: Includes tank stand with 24" legs, drip tray kit, brass spring valves, and accessory package.
• Stackable Design: Interlocking molded ridges for stable stacking without adapters.
• Multiple Openings: 2" top opening for pump or vent, 1" port for desiccant breather or remote fill, and 2" center fill.
• Pump Mounting: Six molded-in brass inserts for attaching side pump plates.
• Exclusive Drain: Molded-in 1" NPT brass bushing for efficient drainage.
• Visual Monitoring: Molded-in site gauge with semi-transparent tank walls for accurate fluid level viewing.
• Durable Material: Made from natural virgin HDPE to resist cracking and corrosion.
• Standard Footprint: 3' x 3' footprint compatible with all Rhino Tuff Tanks.


Specifications

• Model: RTT-6880
• Capacity: 360 Gallons (2 x 180 Gallon Tanks)
• Assembled Dimensions: 36" L x 42" W x 107" H
• Material: Natural virgin HDPE
• Top Openings: 2" for pump or vent
• Additional Ports: 1" for desiccant breather or remote fill, 2" center fill
• Drain Port: Molded-in 1" NPT brass bushing
• Pump Mounting: Six molded-in brass inserts
• Site Gauge: Molded-in, semi-transparent
• Footprint: Standard 3' x 3'
• Stackable: Yes, in any combination with other Rhino tanks

• Shipping Weight: 330 lbs
• Shipping Dimensions: 44 x 36 x 88 in
• Number of Tanks: 2
• Manufacturer: Rhino Tuff Tanks - Maple Lake, MN
• Manufacturer Part Number: RTT-6880
• Ships From: Maple Lake, MN

Applications

• Agricultural, commercial, and industrial fluid management applications

Frequently Asked Questions

What are the dimensions?
Assembled Dimensions: 36" L x 42" W x 107" H; Footprint: Standard 3' x 3'.

How much does it hold?
Capacity: 360 Gallons (2 x 180 Gallon Tanks).

How much does it weigh?
Shipping Weight: 330 lbs.

What can I use it for?
Agricultural, commercial, and industrial fluid management applications.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 2-5 Weeks, and it ships from Rhino Tuff Tanks in Maple Lake, Minnesota. Shipping is calculated at checkout.

What warranty does it come with?
Per Rhino Tuff Tanks: it carries a Limited Lifetime Warranty (Gravity Feed Systems). Coverage is against manufacturing defects.

Who makes it?
Rhino Tuff Tanks of Maple Lake, Minnesota (part number RTT-6880). Tank Supply Direct sells and supports it.

Manufacturer Documents

• Rhino Tuff Tanks product page - 180/180 Gallon Gravity Feed Tank Package
• RTT Spec Sheet - 500392
• Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions
• Rhino Tuff Tanks 2024 product catalog (PDF)

Shipping and Warranty

• Manufacture Lead Time: 2-5 Weeks
• Ships From (State): MN

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty period - Limited Lifetime Warranty (Rhino Tuff Tanks warranty period for Gravity Feed Systems).

Rhino Tuff Tanks Warranty Policy
Rhino Tuff Tanks (RTT) stands behind all of its products and will repair or replace, at its discretion, any product found to be defective due to a manufacturing defect. Items sold, but not manufactured by Rhino Tuff Tanks (including materials, equipment, or components such as pumps, hoses, valves, etc.) are subject to the warranty, if any, of the original manufacturer. Rhino Tuff Tanks will provide the purchaser with reasonable assistance in making any claim for breach of these warranties; however, if the original manufacturer denies such warranty claims, Rhino Tuff Tanks has no additional liability. Rhino Tuff Tanks is not responsible for fluid loss and/or associated cleanup costs. The warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments. Warranties and returns will not be honored without the original receipt of purchase and images of the damaged or defective product. Warranties do not apply to floor or display models, out-of-box models, and close-out or discontinued items.

For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com. Source: Rhino Tuff Tanks warranty page
