Peabody Engineering Climate Control Modules for Pump and Equipment Enclosures

Description

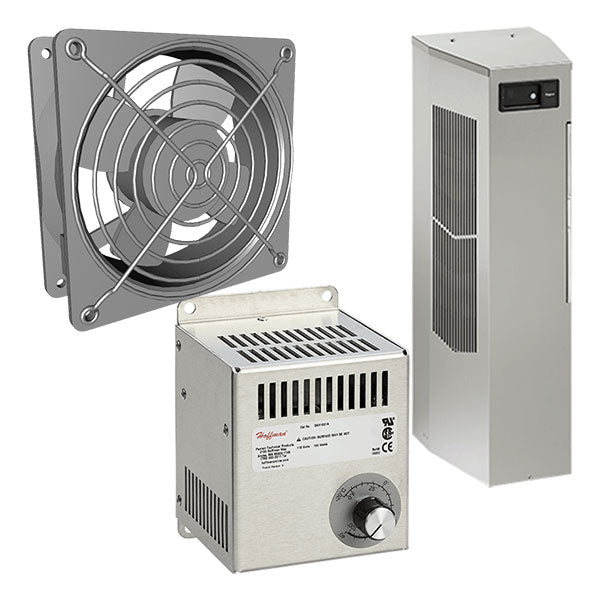

Peabody Engineering climate control modules for PCS-PLUS and PCS-PRO pump and equipment enclosures: a circulation fan kit, heating modules from 100 W to 800 W, and A/C modules from 800 to 6000 BTU, all 115 V.

Peabody sizes the heating and A/C module by enclosure model, indoor or outdoor installation, and whether the enclosure has 1" insulation. Use the selection table in the specifications to pick the right module.

Key Features

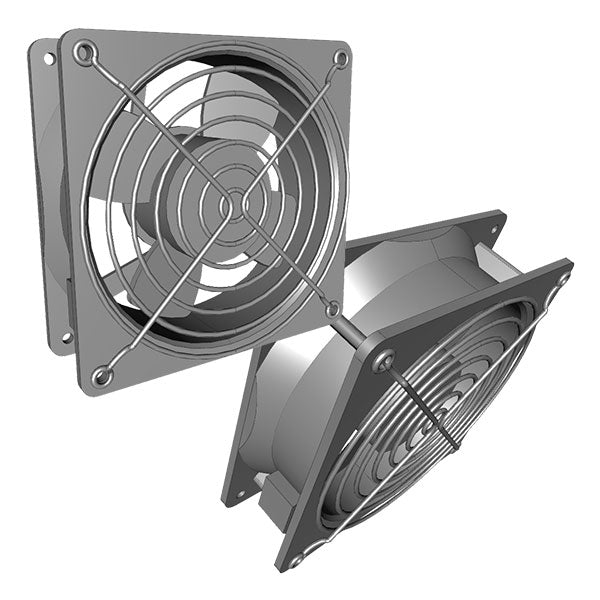

• Circulation Fan Kit: Includes filter guard and cord connector
• Heating Modules: 100 W, 200 W, 400 W and 800 W, 115 V

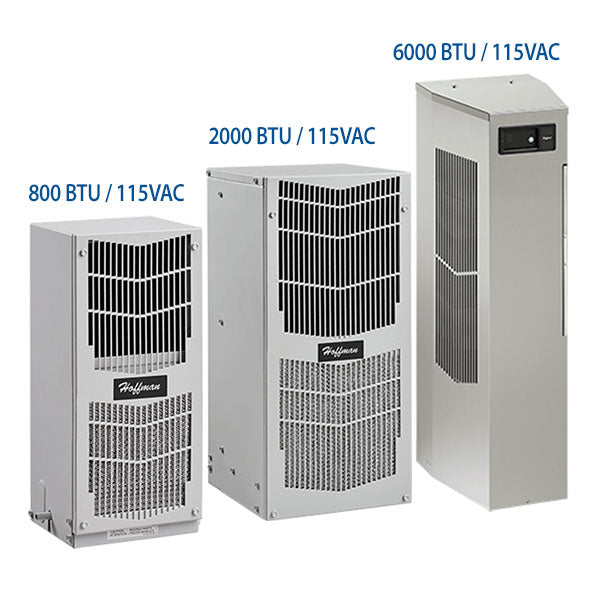

• A/C Modules: 800, 2000 and 6000 BTU, 115 V
• Sized by Enclosure: Selections for PCS-PLUS 2, PCS-PLUS 4 and PCS-PRO enclosures

Specifications

• PCS-PLUS 2 - Indoors - no insulation: heating 100 W / 115 V (253-33888), A/C 800 BTU (253-33891)
• PCS-PLUS 2 - Outdoors - no insulation: heating 400 W / 115 V (253-33889), A/C 2000 BTU (253-33908)
• PCS-PLUS 4 - Indoors - no insulation: heating 400 W / 115 V (253-33889), A/C 2000 BTU (253-33908)
• PCS-PLUS 4 - Outdoors - no insulation: heating 800 W / 115 V (253-33905), A/C 6000 BTU (253-33909)
• PCS-PRO up to 36" x 24" x 24" - Indoors - no insulation: heating 100 W / 115 V (253-33888), A/C 800 BTU (253-33891)
• PCS-PRO up to 36" x 24" x 24" - Outdoors - no insulation: heating 400 W / 115 V (253-33889), A/C 2000 BTU (253-33908)
• PCS-PRO 36" x 30" x 30" and Larger - Indoors - no insulation: heating 400 W / 115 V (253-33889), A/C 2000 BTU (253-33908)
• PCS-PRO 36" x 30" x 30" and Larger - Outdoors - no insulation: heating 800 W / 115 V (253-33905), A/C 6000 BTU (253-33909)
• PCS-PLUS 2 - Indoors - 1" insulation: heating 100 W / 115 V (253-33888), A/C 800 BTU (253-33891)
• PCS-PLUS 2 - Outdoors - 1" insulation: heating 200 W / 115 V (253-33904), A/C 800 BTU (253-33891)
• PCS-PLUS 4 - Indoors - 1" insulation: heating 200 W / 115 V (253-33904), A/C 800 BTU (253-33891)
• PCS-PLUS 4 - Outdoors - 1" insulation: heating 400 W / 115 V (253-33889), A/C 2000 BTU (253-33908)
• PCS-PRO up to 36" x 24" x 24" - Indoors - 1" insulation: heating 100 W / 115 V (253-33888), A/C 800 BTU (253-33891)
• PCS-PRO up to 36" x 24" x 24" - Outdoors - 1" insulation: heating 200 W / 115 V (253-33904), A/C 800 BTU (253-33891)
• PCS-PRO 36" x 30" x 30" and Larger - Indoors - 1" insulation: heating 200 W / 115 V (253-33904), A/C 800 BTU (253-33891)
• PCS-PRO 36" x 30" x 30" and Larger - Outdoors - 1" insulation: heating 400 W / 115 V (253-33889), A/C 2000 BTU (253-33908)
• Manufacturer Part Numbers: 02-33825 (circulation fan kit); 253-33888 (heating module 100 W / 115 V); 253-33904 (heating module 200 W / 115 V); 253-33889 (heating module 400 W / 115 V); 253-33905 (heating module 800 W / 115 V); 253-33891 (A/C module 800 BTU / 115 V); 253-33908 (A/C module 2000 BTU / 115 V); 253-33909 (A/C module 6000 BTU / 115 V)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Heating PCS-PLUS and PCS-PRO enclosures in cold weather
• Cooling and ventilating pump and equipment enclosures

Frequently Asked Questions

Which heating or A/C module do I need?
It depends on the enclosure, indoor or outdoor use, and insulation. For example, an uninsulated PCS-PLUS 4 outdoors uses the 800 W heating module and the 6000 BTU A/C module. See the selection table in the specifications.

Does the fan kit fit every enclosure?
Peabody lists the same circulation fan kit, 02-33825, for every PCS-PLUS and PCS-PRO selection.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Climate Control Options for Enclosures

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
