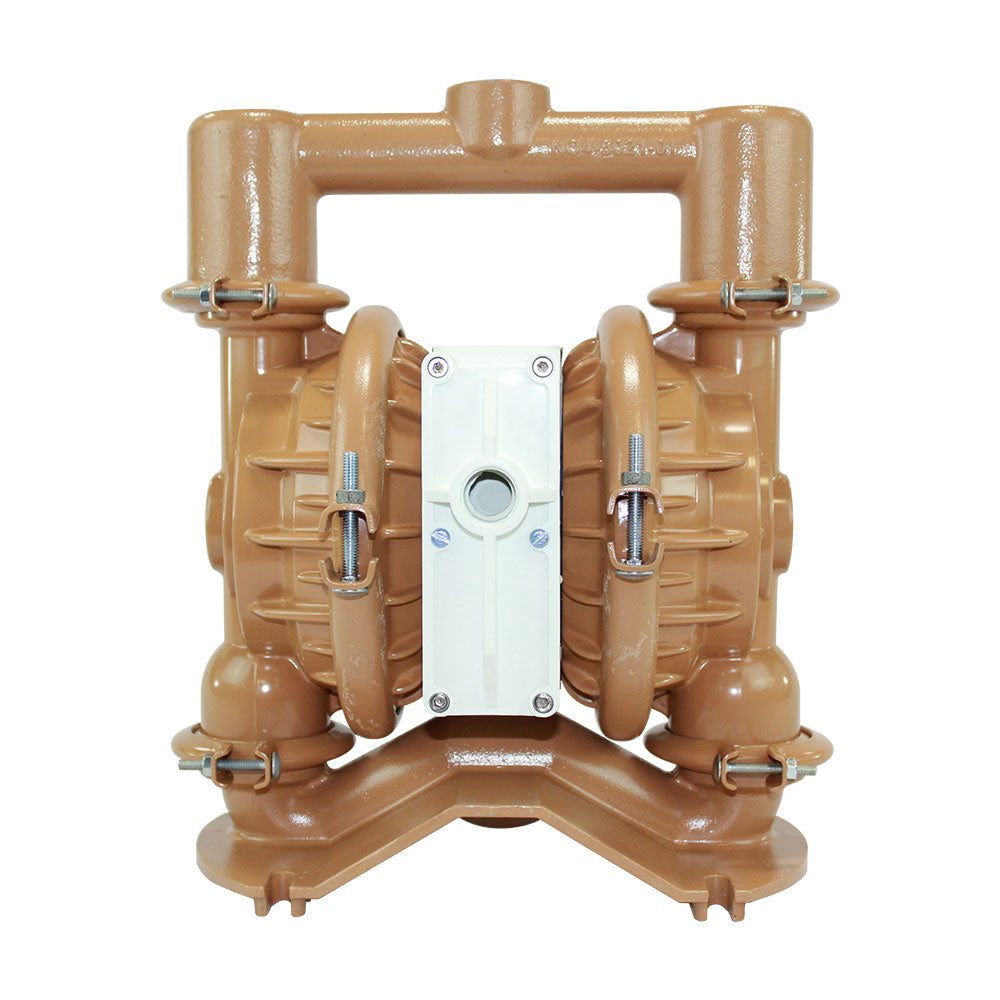

NOMAD PWR-FLO NPF40 1-1/2" aluminum PTFE-fitted air-operated double diaphragm pump, clamped (MPN 40-2661)

Description

The NOMAD Pwr-Flo NPF40 (model 40-2661) is a 1-1/2" (38 mm) aluminum, PTFE-fitted air-operated double diaphragm (AODD) pump that moves up to 78 gpm (295 lpm), runs on up to 125 psig (8.6 bar) of compressed air and passes solids up to 3/16" (4.8 mm). This clamped, NPT-ported standard build is a Pwr-Flo pump built for indoor plant service on clean, filtered air, with an anti-stall ASD air valve for on/off filling and batching.

Aluminum wetted parts give a lightweight, durable metallic pump that is commonly chosen for oils, fuels, lubricants, paints and many water-based fluids; aluminum is generally not used for strong acids or caustics. PTFE has the broadest chemical resistance of the standard diaphragm materials and is the usual choice for aggressive chemicals and solvents; on this build the PTFE diaphragm is backed by a Neoprene diaphragm. Always confirm chemical compatibility with your fluid before ordering - Tank Supply Direct can check it for you.

Key Features

• Asymmetrical spool design (ASD) air valve
• Anti-stall design for reliable on/off filling and batching
• Air-efficient operation on clean, filtered air
• Aluminum wetted parts, PTFE diaphragms - standard NOMAD build 40-2661
• Clamped construction - quick teardown for diaphragm and check-valve service
• Air-operated, no electric motor - flow adjusts with the air supply; no motor or controls at the pump
• Self-priming - suction lift 12' dry / 28' wet

Specifications

• Model / MPN: 40-2661
• Series: NOMAD Pwr-Flo
• Liquid inlet/outlet: 1-1/2" (38 mm), NPT
• Air inlet: 3/4" (19 mm)
• Maximum flow rate: 78 gpm (295 lpm)
• Maximum air supply pressure: 125 psig (8.6 bar)
• Maximum solids passage: 3/16" (4.8 mm)
• Displacement per stroke: 0.14 gal (0.53 L)
• Suction lift: 12' dry / 28' wet
• Temperature range (PTFE elastomers, per NOMAD): 40°F to 220°F (4.4°C to 104.4°C)
• Dimensions (D x W x H): 12.1" x 14.5" x 16.9"
• Weight (per NOMAD manual): 29 lb

Construction

• Wetted body / manifolds: Aluminum
• Air chambers: Aluminum
• Center section: Polypropylene
• Air valve: Polypropylene
• Diaphragms: PTFE (Neoprene back-up)
• Check balls: PTFE
• Seats: Aluminum
• O-rings: PTFE
• Assembly: Clamped
• Manufacturer: NOMAD pumps by JDA Global

Applications

NOMAD lists these industries for this pump: Automotive, Ceramics, Chemical, electronics/semiconductor, Food/Beverage, Mining/Construction, Petroleum, Pharmaceutical, Wastewater.

Pwr-Flo or Trans-Flo? NOMAD positions Pwr-Flo for indoor plant and factory service on clean, filtered air. Its ASD air valve is the more air-efficient design and gives reliable on/off starts for filling and batching.

Common Questions

How many gallons per minute does the NOMAD NPF40 pump?

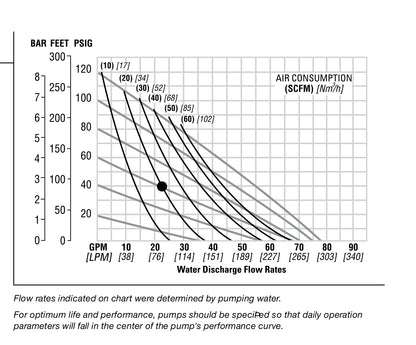

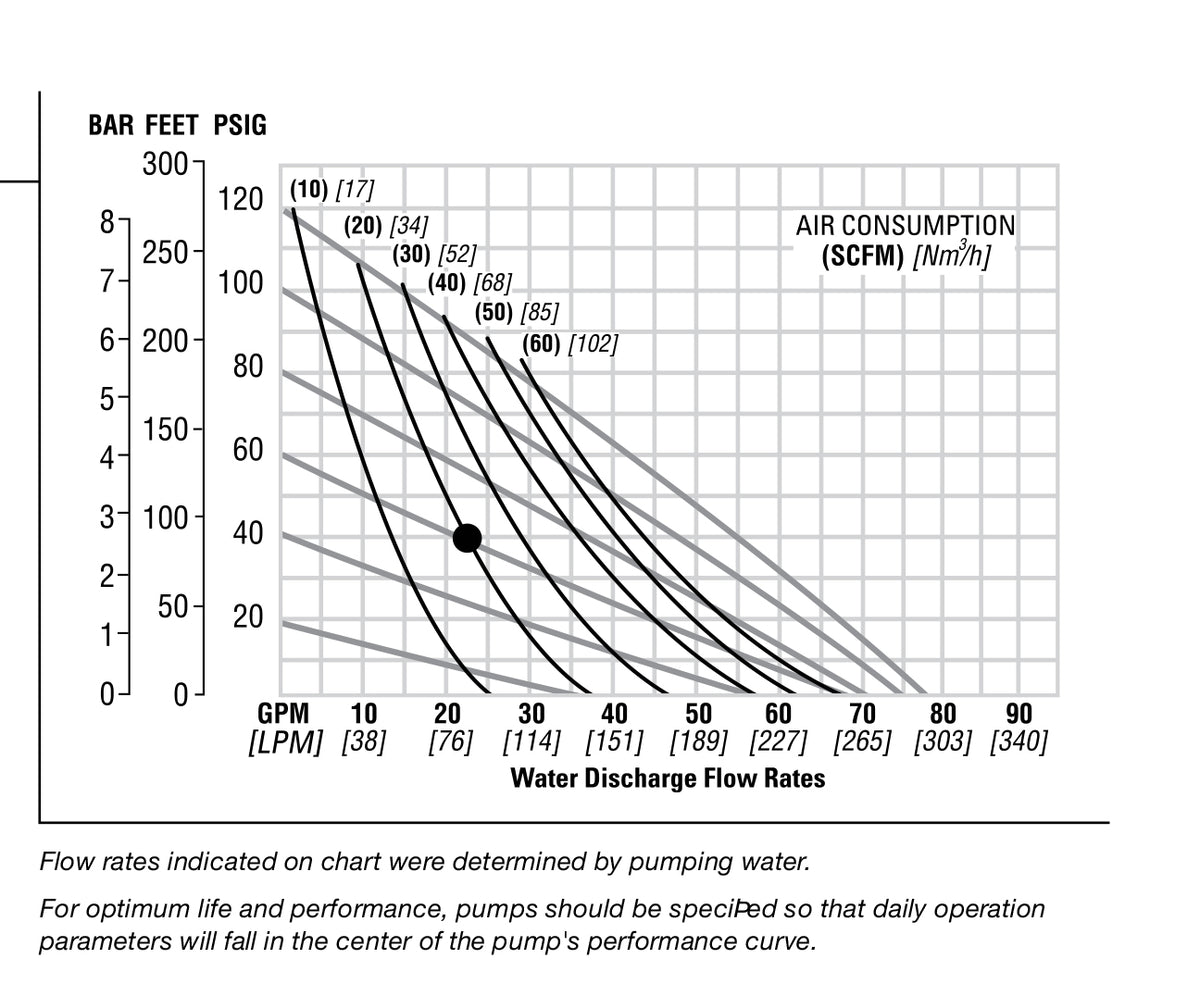

The NOMAD NPF40 is rated up to 78 gpm (295 lpm) at a maximum 125 psig (8.6 bar) air supply. Actual flow drops with discharge pressure, suction lift and fluid viscosity - use the NOMAD performance curve in the product images to size it for your duty point.

What does "PTFE-fitted" mean, and when should I choose a different material?
The diaphragms and check balls are PTFE. PTFE has the broadest chemical resistance of the standard diaphragm materials and is the usual choice for aggressive chemicals and solvents; on this build the PTFE diaphragm is backed by a Neoprene diaphragm.

What air supply does it need?
Connect clean, dry compressed air to the 3/4" (19 mm) air inlet; do not exceed 125 psig (8.6 bar). Flow and discharge pressure rise and fall with the air pressure you supply.

Is this pump available in other configurations?
Yes. NOMAD also builds this model with other wetted materials (Ductile Iron, Stainless Steel); port connections (BSP, Tri-Clamp); ATEX versions. This listing is the standard build; call or email Tank Supply Direct for a quote on any other configuration.

How fast does it ship?
The standard build ships from Nevada in approximately 4 days. Shipping is calculated at checkout.

Manufacturer Documents

• NOMAD NPF40 operation manual (PDF)
• NOMAD product page
