NOMAD Quali-Flo N1F 1" Aluminum Buna-Fitted Air-Operated Double Diaphragm Pump, Bolted (MPN N1FB1ABWANS000)

Description

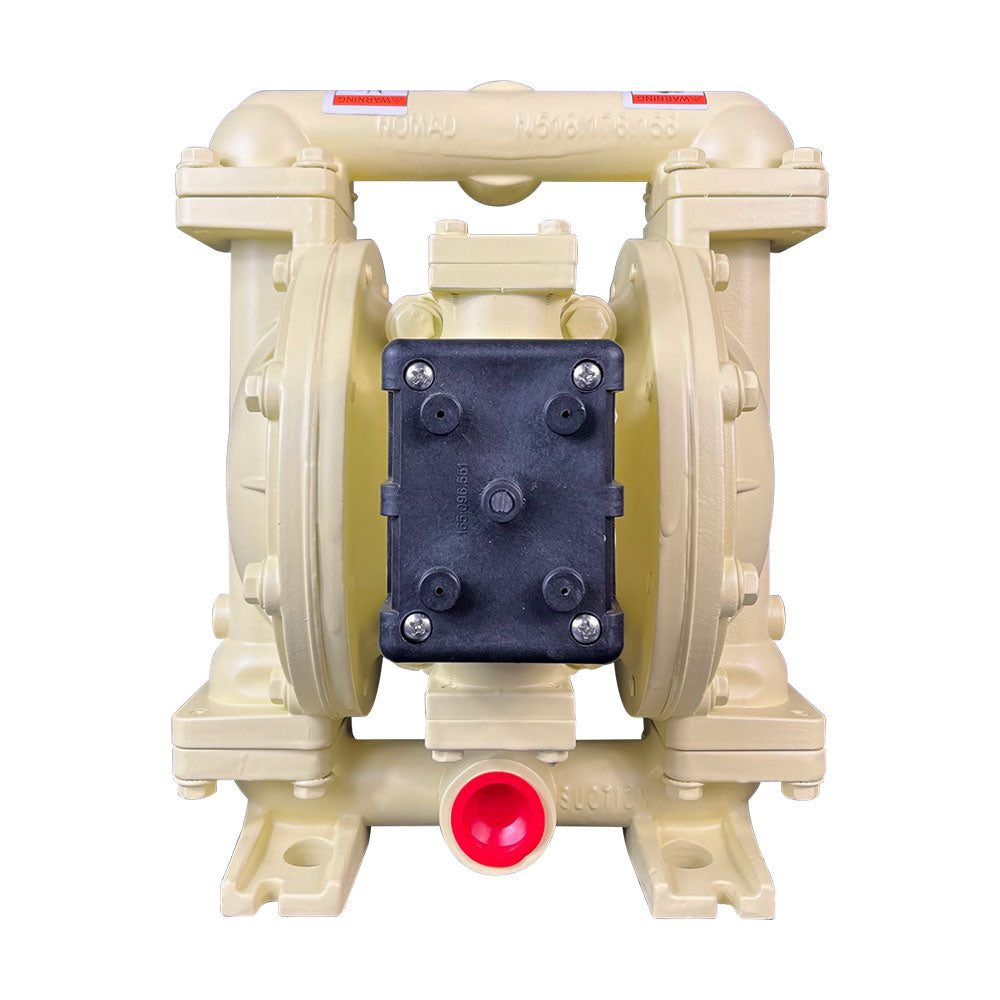

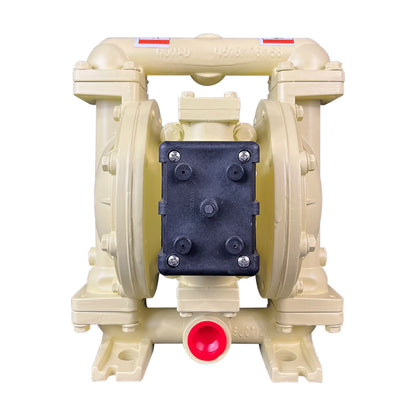

The NOMAD Quali-Flo N1F (model N1FB1ABWANS000) is a 1" (25 mm) aluminum, Buna-fitted air-operated double diaphragm (AODD) pump that moves up to 46 gpm, runs on up to 125 psig (8.6 bar) of compressed air and passes solids up to 0.25" (6 mm). This bolted standard build is part of the NOMAD Quali-Flo line.

Aluminum wetted parts give a lightweight, durable metallic pump that is commonly chosen for oils, fuels, lubricants, paints and many water-based fluids; aluminum is generally not used for strong acids or caustics. Buna-N (nitrile) is a general-purpose rubber commonly used with petroleum oils, fuels, hydraulic fluid and water. Always confirm chemical compatibility with your fluid before ordering - Tank Supply Direct can check it for you.

Key Features

• Aluminum wetted parts, Buna diaphragms - standard NOMAD build N1FB1ABWANS000
• Bolted construction - fastened manifolds for a positive seal on leak-sensitive fluids
• Air-operated, no electric motor - flow adjusts with the air supply; no motor or controls at the pump

Specifications

• Model / MPN: N1FB1ABWANS000
• Series: NOMAD Quali-Flo
• Liquid inlet/outlet: 1" NPT (internal)
• Air inlet: 1/2" NPT
• Maximum flow rate: 46 gpm
• Maximum air supply pressure: 125 psig (8.6 bar)
• Maximum solids passage: 0.25" (6 mm)
• Displacement per stroke: 0.11 gal (0.42 L)
• Temperature range (Buna-N elastomers, per NOMAD): 10°F to 180°F (-12.2°C to 82.2°C)
• Weight (per NOMAD manual): 25.1 lb

Construction

• Wetted body / manifolds: Aluminum
• Diaphragms: Buna
• Assembly: Bolted
• Manufacturer: NOMAD pumps by JDA Global

Applications

NOMAD lists these industries for this pump: Automotive, Ceramics, Chemical, electronics/semiconductor, Food/Beverage, Mining/Construction, Petroleum, Pharmaceutical, Wastewater.

Common Questions

How many gallons per minute does the NOMAD N1F pump?

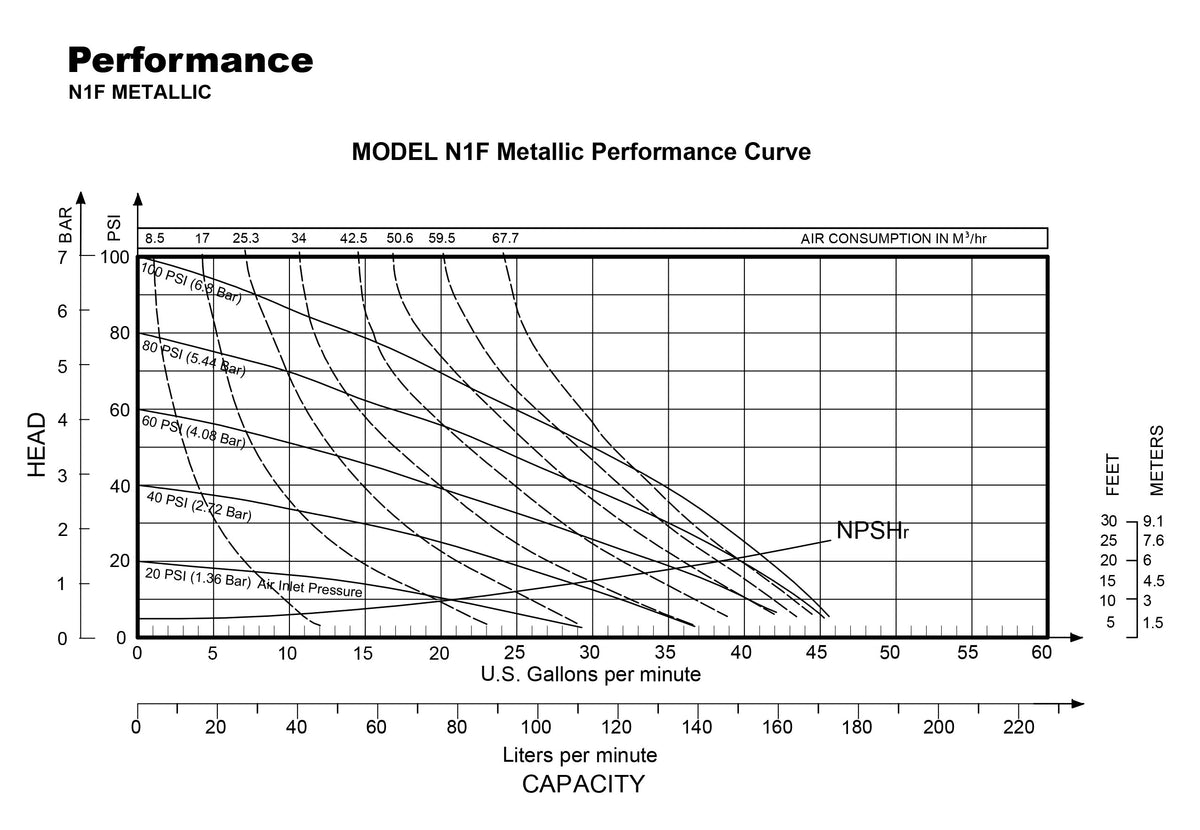

The NOMAD N1F is rated up to 46 gpm at a maximum 125 psig (8.6 bar) air supply. Actual flow drops with discharge pressure, suction lift and fluid viscosity - use the NOMAD performance curve in the product images to size it for your duty point.

What does "Buna-fitted" mean, and when should I choose a different material?
The diaphragms are Buna. Buna-N (nitrile) is a general-purpose rubber commonly used with petroleum oils, fuels, hydraulic fluid and water. Other elastomers offered for this pump include Neoprene, Santoprene, Viton.

What air supply does it need?
Connect clean, dry compressed air to the 1/2" NPT air inlet; do not exceed 125 psig (8.6 bar). Flow and discharge pressure rise and fall with the air pressure you supply.

Is this pump available in other configurations?
Yes. NOMAD also builds this model with other wetted materials (Stainless Steel). This listing is the standard build; call or email Tank Supply Direct for a quote on any other configuration.

How fast does it ship?
The standard build ships from Nevada in approximately 4 days. Shipping is calculated at checkout.

Manufacturer Documents

• NOMAD N1F operation manual (PDF)
• NOMAD product page

Shipping and Warranty

• Manufacture Lead Time: Approximately 4 days
• Ships From (State): NV

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
