180/180 Gallon Rhino Tuff Tanks Gravity Feed System No Valve (MPN: RTT-6880-NV)

Description

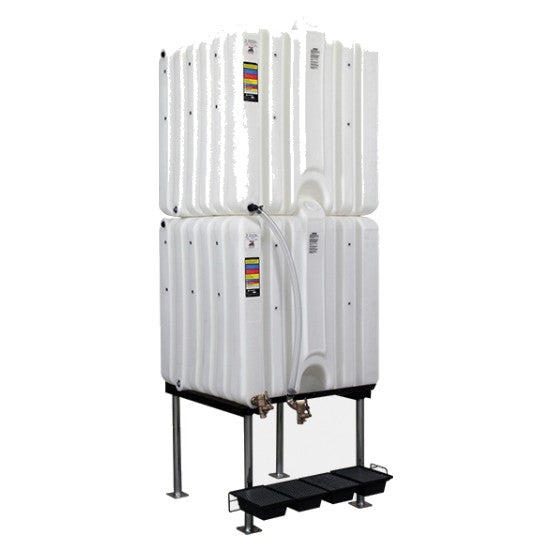

The 360 Gallon Stackable Fluid Storage System provides an efficient, modular solution for fluid storage and dispensing in industrial, agricultural, and commercial settings. This package includes two 180-gallon stackable tanks, a tank stand with 24″ legs, a drip tray kit, and a comprehensive accessory package designed for fast and flexible installation.

Constructed from natural virgin high-density polyethylene, these tanks offer excellent chemical resistance and durability. Featuring interlocking top and bottom ridges for secure stacking, molded-in 304 stainless steel drain fittings, and built-in site gauges, this system supports safe, accessible fluid management of oils, lubricants, DEF, and other compatible fluids.

Perfect for large-scale operations, the stackable design maximizes vertical storage while maintaining fluid visibility and dispensing convenience.

Key Features

• 360-Gallon Total Capacity: Includes two 180-gallon stackable tanks mounted on a tank stand with 24″ legs.
• Stackable Design: Interlocking ridges allow secure stacking without the need for brackets.
• Durable HDPE Construction: Made from natural virgin high-density polyethylene for superior chemical resistance and long service life.
• 304 Stainless Steel Drain Fittings: Industry’s only molded-in 1″ NPT stainless steel bushing at the drain opening, requiring no additional fittings.
• Integrated Site Gauge: Semi-transparent tank walls with molded-in fluid level indicators eliminate the need for external gauges.
• Multiple Port Openings:
  • 2″ top opening for pump or vent applications
  • 1″ opening for desiccant breather or remote fill
  • 2″ center fill opening for easy refilling
• Mounting Ready: Six molded-in metal inserts allow attachment of a side-mount pump plate (sold separately).
• Standard Footprint: Both tanks share a 3′ x 3′ base allowing stacking compatibility with other tanks in the series.
• No Conversion Brackets Needed: Stackable in any combination for maximum flexibility.


Specifications

• Shipping Weight: 330 lbs
• Shipping Dimensions: 44″ L x 36″ W x 88″ H
• Assembled Dimensions: 36″ L x 42″ W x 107″ H
• Footprint: Standard 3′ x 3′
• Material: Natural Virgin HDPE
• Drain Fitting: Molded-in 304 Stainless Steel 1″ NPT Bushing
• Number of Tanks: 2
• Application: Oil, DEF, Lubricants, Non-Potable Fluids

• Manufacturer: Rhino Tuff Tanks - Maple Lake, MN
• Manufacturer Part Number: RTT-6880-NV
• Ships From: Maple Lake, MN

Package Includes

• Two (2) 180-Gallon Stackable Tanks
• Tank Stand with 24″ Legs
• Drip Tray Kit
• Accessory Package, including:
  • Braided Poly Tubing
  • Polyethylene Elbow with Barbed End
  • Polyethylene Union with Barbed End
  • 1″ Hose Clamps
  • 2 oz Tube of Thread Sealant
  • Elbow Kit with Nut for Stand


Applications

• Oil
• DEF
• Lubricants
• Non-Potable Fluids

Frequently Asked Questions

What are the dimensions?
Assembled Dimensions: 36″ L x 42″ W x 107″ H; Footprint: Standard 3′ x 3′.

How much does it weigh?
Shipping Weight: 330 lbs.

What's included?
Two (2) 180-Gallon Stackable Tanks; Tank Stand with 24″ Legs; Drip Tray Kit; Accessory Package , including: Braided Poly Tubing; Polyethylene Elbow with Barbed End; Polyethylene Union with Barbed End; 1″ Hose Clamps; 2 oz Tube of Thread Sealant; Elbow Kit with Nut for Stand.

What can I use it for?
Oil; DEF; Lubricants; Non-Potable Fluids.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 2-5 Weeks, and it ships from Rhino Tuff Tanks in Maple Lake, Minnesota. Shipping is calculated at checkout.

What warranty does it come with?
Per Rhino Tuff Tanks: it carries a Limited Lifetime Warranty (Gravity Feed Systems). Coverage is against manufacturing defects.

Who makes it?
Rhino Tuff Tanks of Maple Lake, Minnesota (part number RTT-6880-NV). Tank Supply Direct sells and supports it.

Manufacturer Documents

• Rhino Tuff Tanks product page - 180/180 Gallon Gravity Feed Tank Package
• RTT Spec Sheet - 500392
• Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions
• Rhino Tuff Tanks 2024 product catalog (PDF)

Shipping and Warranty

• Manufacture Lead Time: 2-5 Weeks
• Ships From (State): MN

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty period - Limited Lifetime Warranty (Rhino Tuff Tanks warranty period for Gravity Feed Systems).

Rhino Tuff Tanks Warranty Policy
Rhino Tuff Tanks (RTT) stands behind all of its products and will repair or replace, at its discretion, any product found to be defective due to a manufacturing defect. Items sold, but not manufactured by Rhino Tuff Tanks (including materials, equipment, or components such as pumps, hoses, valves, etc.) are subject to the warranty, if any, of the original manufacturer. Rhino Tuff Tanks will provide the purchaser with reasonable assistance in making any claim for breach of these warranties; however, if the original manufacturer denies such warranty claims, Rhino Tuff Tanks has no additional liability. Rhino Tuff Tanks is not responsible for fluid loss and/or associated cleanup costs. The warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments. Warranties and returns will not be honored without the original receipt of purchase and images of the damaged or defective product. Warranties do not apply to floor or display models, out-of-box models, and close-out or discontinued items.

For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com. Source: Rhino Tuff Tanks warranty page
