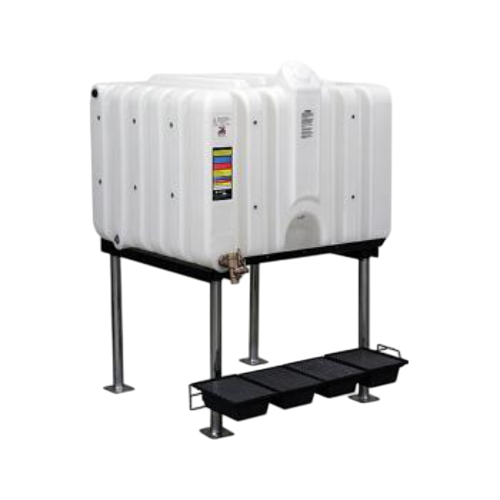

120 Gallon Rhino Tuff Tanks Complete Gravity Feed Tank System (MPN: RTT-6200)

Description

The Rhino 120 Gallon Gravity Feed Tank System is a reliable and durable solution designed for fluid storage and gravity-fed dispensing. Featuring a single 120-gallon stackable tank mounted on a sturdy tank stand with 24" legs, this system is perfect for mobile or stationary applications requiring efficient fluid management.

Constructed from natural virgin high-density polyethylene, the tank offers excellent chemical resistance and long-lasting durability. It includes convenient features such as molded-in brass inserts, site gauges, and multiple access openings to facilitate easy operation and maintenance. The included drip tray kit and brass spring valves add safety and cleanliness to the system.

Key Features

• Capacity: 1 x 120 Gallon Tank (120 Gallons total).
• Stackable Tank: Interlocking top and bottom ridges for secure stacking without conversion brackets.
• Tank Stand with 24" Legs: Provides sturdy support and optimal height for gravity feed.
• Drip Tray Kit: Included to manage spills and maintain clean operation.
• Brass Spring Valves: Durable valves for reliable fluid control.
• Accessory Package: Complete set of mounting and installation accessories included.
• Multiple Openings: 2" top opening for pump or vent application, 1" opening for desiccant breather or remote fill, and convenient 2" center fill opening.
• Molded-in Brass Inserts: Six brass inserts allow for side mount pump plate attachment.
• Mold-in Graphic and Identification Label: For easy identification and branding.
• Unique Drain: Industry’s only molded-in brass 1" NPT bushing at the drain opening.
• Site Gauge: Molded-in site gauge and semi-transparent tank material eliminate the need for external gauges.
• Natural Virgin HDPE Construction: Ensures chemical resistance and long service life.
• Stackable in Any Combination: No conversion brackets required.
• Standard Footprint: Compact 3' x 3' footprint for flexible placement.


Specifications

• Capacity: 1 x 120 Gallon Tank (120 Gallons total)
• Assembled Dimensions: 36" L x 42" W x 56" H
• Top Opening: 2" for pump or vent application
• Additional Openings: 1" for desiccant breather or remote fill, 2" center fill opening
• Stacking System: Interlocking ridges for secure stacking
• Brass Inserts: Six molded-in brass inserts for pump plate attachment
• Drain: Molded-in brass 1" NPT bushing
• Site Gauge: Molded-in, semi-transparent tank material
• Material: Natural virgin high density polyethylene
• Footprint: Standard 3' x 3' footprint

• Weight: 190 lbs
• Dimensions: 44 × 36 × 38 in
• Shipping Weight: 190 lbs
• Shipping Dimensions: 44 x 36 x 38 in
• Number of Tanks: 1
• Manufacturer: Rhino Tuff Tanks - Maple Lake, MN
• Manufacturer Part Number: RTT-6200
• Ships From: Maple Lake, MN

Applications

• Mobile or stationary applications requiring efficient fluid management

Frequently Asked Questions

What are the dimensions?
Assembled Dimensions: 36" L x 42" W x 56" H; Footprint: Standard 3' x 3' footprint; Dimensions: 44 × 36 × 38 in.

How much does it hold?
Capacity: 1 x 120 Gallon Tank (120 Gallons total).

How much does it weigh?
Weight: 190 lbs; Shipping Weight: 190 lbs.

What can I use it for?
Mobile or stationary applications requiring efficient fluid management.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 2-5 Weeks, and it ships from Rhino Tuff Tanks in Maple Lake, Minnesota. Shipping is calculated at checkout.

What warranty does it come with?
Per Rhino Tuff Tanks: it carries a Limited Lifetime Warranty (Gravity Feed Systems). Coverage is against manufacturing defects.

Who makes it?
Rhino Tuff Tanks of Maple Lake, Minnesota (part number RTT-6200). Tank Supply Direct sells and supports it.

Manufacturer Documents

• Rhino Tuff Tanks product page - 120 Gallon Gravity Feed Tank Package
• RTT Spec Sheet - 500399
• Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions
• Rhino Tuff Tanks 2024 product catalog (PDF)

Shipping and Warranty

• Manufacture Lead Time: 2-5 Weeks
• Ships From (State): MN

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty period - Limited Lifetime Warranty (Rhino Tuff Tanks warranty period for Gravity Feed Systems).

Rhino Tuff Tanks Warranty Policy
Rhino Tuff Tanks (RTT) stands behind all of its products and will repair or replace, at its discretion, any product found to be defective due to a manufacturing defect. Items sold, but not manufactured by Rhino Tuff Tanks (including materials, equipment, or components such as pumps, hoses, valves, etc.) are subject to the warranty, if any, of the original manufacturer. Rhino Tuff Tanks will provide the purchaser with reasonable assistance in making any claim for breach of these warranties; however, if the original manufacturer denies such warranty claims, Rhino Tuff Tanks has no additional liability. Rhino Tuff Tanks is not responsible for fluid loss and/or associated cleanup costs. The warranty does not apply to any products that have been subjected to an accident, adjustment, improper installation, misapplication, misuse, modification, neglect, repair, including but not limited to improper maintenance, or use of unauthorized parts or attachments. Warranties and returns will not be honored without the original receipt of purchase and images of the damaged or defective product. Warranties do not apply to floor or display models, out-of-box models, and close-out or discontinued items.

For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com. Source: Rhino Tuff Tanks warranty page
