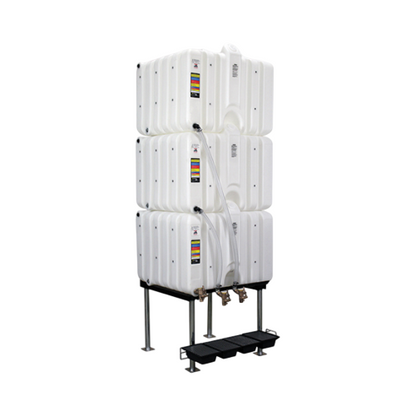

120/120/120 Gallon Rhino Tuff Tanks Gravity Feed System No Valve (MPN: RTT-6222-NV)

Description

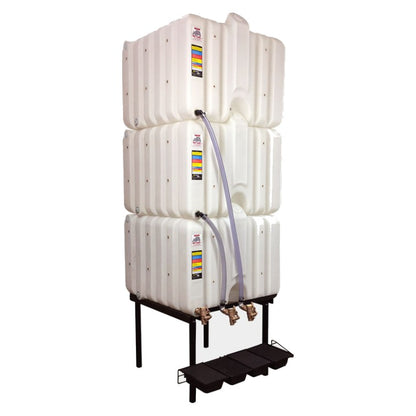

The 360 Gallon Stackable Fluid Storage System provides a powerful and space-efficient solution for fluid storage and dispensing in industrial, agricultural, and commercial settings. This system includes three 120-gallon stackable tanks, a tank stand with 24″ legs, a drip tray kit, and a comprehensive accessory package, offering a complete setup for fast, reliable fluid management.

Built from natural virgin high-density polyethylene, each tank delivers exceptional chemical resistance and long-lasting durability. Key features like molded-in 304 stainless steel drain bushings, secure interlocking ridges, and built-in site gauges make it ideal for handling oils, lubricants, DEF, and other compatible fluids safely and efficiently.

Whether equipping a large workshop, fleet facility, or mobile service unit, this modular stackable system maximizes vertical storage space while ensuring easy fluid level monitoring and secure dispensing.

Key Features

• 360-Gallon Total Capacity: Includes three 120-gallon stackable tanks mounted on a heavy-duty tank stand with 24″ legs.
• Secure Stackable Design: Interlocking top and bottom ridges allow bracket-free, stable stacking.
• High-Quality HDPE Construction: Made from natural virgin high-density polyethylene for outstanding chemical resistance and durability.
• Molded Stainless Steel Drain Fittings: Features the industry’s only molded-in 304 stainless steel 1″ NPT bushing at the drain opening, eliminating the need for aftermarket fittings.
• Built-In Site Gauge: Semi-transparent tank material and molded-in fluid level indicators remove the need for external gauges.
• Multiple Access Ports:
  • 2″ top opening for pump or vent applications
  • 1″ opening for desiccant breather or remote fill
  • 2″ center fill opening for convenient refilling
• Mounting Flexibility: Six molded-in metal inserts facilitate attachment of a side-mount pump plate (sold separately).
• Standard Footprint: All tanks feature a 3′ x 3′ base, enabling stacking compatibility with other sizes.
• No Converting Brackets Needed: Stackable in any combination for maximum system flexibility.


Specifications

• Shipping Weight: 330 lbs
• Shipping Dimensions: 44″ L x 36″ W x 90″ H
• Assembled Dimensions: 36″ L x 42″ W x 110″ H
• Footprint: Standard 3′ x 3′
• Material: Natural Virgin HDPE
• Drain Fitting: Molded-in 304 Stainless Steel 1″ NPT Bushing
• Number of Tanks: 3
• Application: Oil, DEF, Lubricants, Non-Potable Fluids

• Manufacturer: Rhino Tuff Tanks - Maple Lake, MN
• Manufacturer Part Number: RTT-6222-NV
• Ships From: Maple Lake, MN

Package Includes

• Three (3) 120-Gallon Stackable Tanks
• Tank Stand with 24″ Legs
• Drip Tray Kit
• Accessory Package, including:
  • Braided Poly Tubing
  • Polyethylene Elbow with Barbed End
  • Polyethylene Union with Barbed End
  • 1″ Hose Clamps
  • 2 oz Tube of Thread Sealant
  • Elbow Kit with Nut for Stand


Applications

• Oil
• DEF
• Lubricants
• Non-Potable Fluids

Frequently Asked Questions

What are the dimensions?
Assembled Dimensions: 36″ L x 42″ W x 110″ H; Footprint: Standard 3′ x 3′.

How much does it weigh?
Shipping Weight: 330 lbs.

What's included?
Three (3) 120-Gallon Stackable Tanks; Tank Stand with 24″ Legs; Drip Tray Kit; Accessory Package , including: Braided Poly Tubing; Polyethylene Elbow with Barbed End; Polyethylene Union with Barbed End; 1″ Hose Clamps; 2 oz Tube of Thread Sealant; Elbow Kit with Nut for Stand.

What can I use it for?
Oil; DEF; Lubricants; Non-Potable Fluids.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 2-5 Weeks, and it ships from Rhino Tuff Tanks in Maple Lake, Minnesota. Shipping is calculated at checkout.

What warranty does it come with?
Per Rhino Tuff Tanks: it carries a Limited Lifetime Warranty (Gravity Feed Systems). Coverage is against manufacturing defects.

Who makes it?
Rhino Tuff Tanks of Maple Lake, Minnesota (part number RTT-6222-NV). Tank Supply Direct sells and supports it.

Manufacturer Documents

• Rhino Tuff Tanks product page - 120/120/120 Gallon Gravity Feed Tank Package
• RTT Spec Sheet - 500388
• Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions
• Rhino Tuff Tanks 2024 product catalog (PDF)
