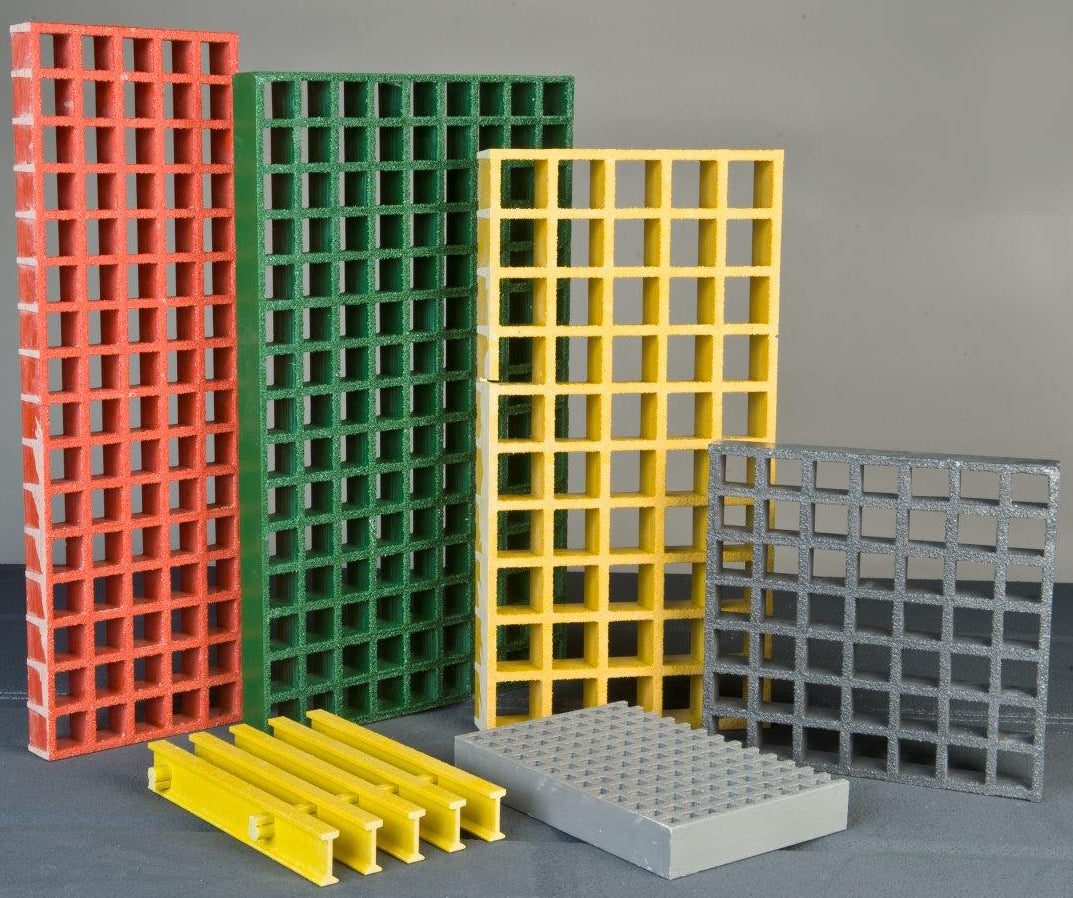

Peabody Engineering ProGrid Molded Grating - Grit Top Flame Retardant (1" to 2" Thick)

Description

Peabody Engineering ProGrid molded fiberglass grating with a grit top and flame retardant resin, in 1", 1-1/2" and 2" thicknesses and 3' x 10', 4' x 8' and 4' x 12' panels, in polyester or vinylester resin.

Choose the thickness and panel size, then the resin. Panel weights are listed in the specifications. SST hold down and joining clips are sold separately.

Key Features

• Grit Top: Grit top walking surface
• Flame Retardant: Flame retardant molded grating
• Two Resins: Polyester or vinylester
• Panel Sizes: 3' x 10', 4' x 8' and 4' x 12'

Specifications

• 1" Thick, 3' x 10' Panel, 1-1/2" x 1-1/2" Grid: weight per panel 75
• 1" Thick, 4' x 8' Panel, 1-1/2" x 1-1/2" Grid: weight per panel 80
• 1" Thick, 4' x 12' Panel, 1-1/2" x 1-1/2" Grid: weight per panel 120
• 1-1/2" Thick, 3' x 10' Panel, 1-1/2" x 1-1/2" Grid: weight per panel 120
• 1-1/2" Thick, 4' x 8' Panel, 1-1/2" x 1-1/2" Grid: weight per panel 128
• 1-1/2" Thick, 4' x 12' Panel, 1-1/2" x 1-1/2" Grid: weight per panel 191
• 2" Thick, 4' x 12' Panel, 2" x 2" Grid: weight per panel 207
• Manufacturer Part Numbers: 16-4852 / 16-4910 (1" Thick, 3' x 10' Panel, 1-1/2" x 1-1/2" Grid, polyester / vinylester); 16-4835 / 16-4887 (1" Thick, 4' x 8' Panel, 1-1/2" x 1-1/2" Grid, polyester / vinylester); 16-4836 / 16-4888 (1" Thick, 4' x 12' Panel, 1-1/2" x 1-1/2" Grid, polyester / vinylester); 16-4854 / 16-4912 (1-1/2" Thick, 3' x 10' Panel, 1-1/2" x 1-1/2" Grid, polyester / vinylester); 16-4839 / 16-4889 (1-1/2" Thick, 4' x 8' Panel, 1-1/2" x 1-1/2" Grid, polyester / vinylester); 16-4840 / 16-4890 (1-1/2" Thick, 4' x 12' Panel, 1-1/2" x 1-1/2" Grid, polyester / vinylester); 16-4843 / 16-4891 (2" Thick, 4' x 12' Panel, 2" x 2" Grid, polyester / vinylester)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Walkways, platforms and trench covers
• Containment area flooring

Frequently Asked Questions

Polyester or vinylester?
Peabody offers each panel in polyester or vinylester resin; vinylester is priced higher. Choose the resin your application specifies.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: ProGrid Molded Grating
