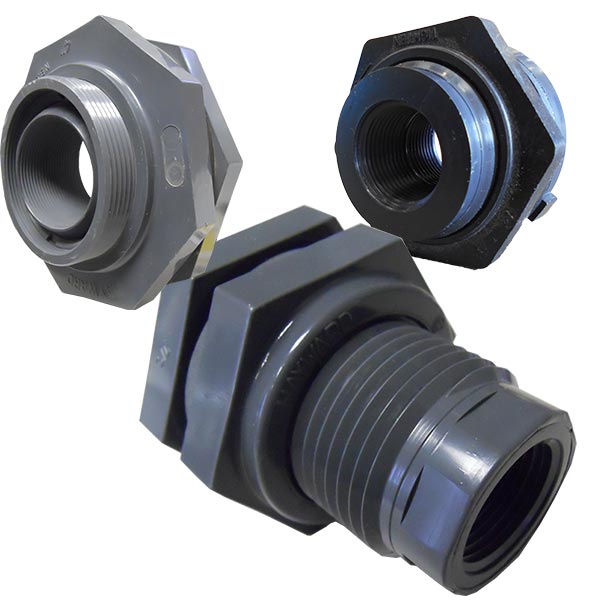

Peabody Engineering Short Pattern Bulkhead Fittings, PVC and CPVC (1/2" to 4")

Description

Peabody Engineering short pattern bulkhead fittings in PVC (socket x thread or thread x thread) and CPVC (socket x thread), sizes 1/2" through 4", each with an EPDM or Viton gasket. CPVC thread x thread is offered in 4" only.

Choose the size and gasket, then the body material and connection.

Key Features

• Short Pattern: Short pattern bulkhead fitting
• PVC or CPVC: S x T or T x T connections
• Gasket Choice: EPDM or Viton
• 1/2" to 4": Eight sizes

Specifications

• Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3", 4"
• Materials and Connections: PVC S x T, PVC T x T, CPVC S x T; CPVC T x T in 4" only
• Connection Codes: S x T = socket x thread; T x T = thread x thread
• Gaskets: EPDM, Viton
• Manufacturer Part Numbers: 10-29784 (1/2" EPDM, PVC SxT); 10-34575 (1/2" EPDM, PVC TxT); 10-34250 (1/2" EPDM, CPVC SxT); 10-34242 (1/2" Viton, PVC SxT); 10-34583 (1/2" Viton, PVC TxT); 10-34258 (1/2" Viton, CPVC SxT); 10-34235 (3/4" EPDM, PVC SxT); 10-34576 (3/4" EPDM, PVC TxT); 10-34251 (3/4" EPDM, CPVC SxT); 10-34243 (3/4" Viton, PVC SxT); 10-34584 (3/4" Viton, PVC TxT); 10-34259 (3/4" Viton, CPVC SxT); 10-34236 (1" EPDM, PVC SxT); 10-34577 (1" EPDM, PVC TxT); 10-34252 (1" EPDM, CPVC SxT); 10-34244 (1" Viton, PVC SxT); 10-34585 (1" Viton, PVC TxT); 10-14988 (1" Viton, CPVC SxT); 10-34237 (1-1/4" EPDM, PVC SxT); 10-34578 (1-1/4" EPDM, PVC TxT); 10-34253 (1-1/4" EPDM, CPVC SxT); 10-34245 (1-1/4" Viton, PVC SxT); 10-34586 (1-1/4" Viton, PVC TxT); 10-34260 (1-1/4" Viton, CPVC SxT); 10-34238 (1-1/2" EPDM, PVC SxT); 10-34579 (1-1/2" EPDM, PVC TxT); 10-34254 (1-1/2" EPDM, CPVC SxT); 10-34246 (1-1/2" Viton, PVC SxT); 10-34587 (1-1/2" Viton, PVC TxT); 10-34261 (1-1/2" Viton, CPVC SxT); 10-34239 (2" EPDM, PVC SxT); 10-34580 (2" EPDM, PVC TxT); 10-34255 (2" EPDM, CPVC SxT); 10-34247 (2" Viton, PVC SxT); 10-34588 (2" Viton, PVC TxT); 10-34262 (2" Viton, CPVC SxT); 10-34240 (3" EPDM, PVC SxT); 10-34581 (3" EPDM, PVC TxT); 10-34256 (3" EPDM, CPVC SxT); 10-34248 (3" Viton, PVC SxT); 10-34589 (3" Viton, PVC TxT); 10-34263 (3" Viton, CPVC SxT); 10-34241 (4" EPDM, PVC SxT); 10-34582 (4" EPDM, PVC TxT); 10-34257 (4" EPDM, CPVC SxT); 10-34598 (4" EPDM, CPVC TxT); 10-34249 (4" Viton, PVC SxT); 10-34590 (4" Viton, PVC TxT); 10-34264 (4" Viton, CPVC SxT); 10-34606 (4" Viton, CPVC TxT)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Adding inlet, outlet and drain connections to polyethylene tanks
• Replacing worn or damaged tank fittings

Frequently Asked Questions

Is CPVC T x T available in every size?
No. Peabody offers the CPVC thread x thread short pattern fitting in 4" only.

Which gasket should I choose?
Choose the gasket material that is compatible with the chemical you are storing. If you are unsure, check the chemical resistance chart for your product or ask Tank Supply Direct.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Bulkhead and Bolted Fittings

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Peabody Engineering's published warranty is a full 3-year warranty on its standard tanks and a full 5-year warranty on its heavy-duty tanks, and it does not apply to special applications such as sodium hypochlorite and bio-diesel. Peabody does not state a separate warranty term for this item. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com. Source: Peabody Engineering FAQs
