NOMAD 3" PTFE Wet End Kit for Plastic Diaphragm Pumps, Fits Wilden® PS1500/P1500/PV1500/PX1500 & NOMAD NPF80W (MPN N15-9815-55)

Description

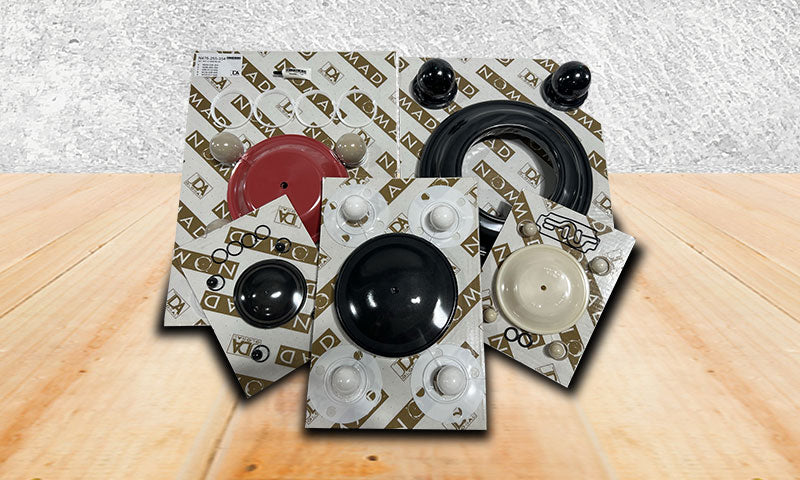

The NOMAD N15-9815-55 is a PTFE wet end elastomer kit for 3" plastic air-operated double diaphragm (AODD) pumps. It contains the 2 diaphragms, 2 back-ups, 4 balls and 12 O-rings/gaskets needed to rebuild the wetted side of one pump. It fits these NOMAD pumps sold by Tank Supply Direct: NPF80W (80-120061-1), and JDA Global lists it for Wilden® PS1500, P1500, PV1500, PX1500 plastic pumps.

NOMAD parts are made by JDA Global of Henderson, Nevada, as after-market replacements for NOMAD pumps and pumps from other manufacturers. The NOMAD part number follows the Wilden® numbering: N15-9815-55 corresponds to Wilden® kit 15-9815-55.

Key Features

• Complete wet end rebuild: 2 diaphragms, 2 back-ups, 4 balls, 12 O-rings/gaskets in one kit
• PTFE elastomers for 3" plastic pumps
• Matched to NOMAD NPF80W: listed by JDA Global as the wet end kit for 80-120061-1
• Cross-references Wilden® 15-9815-55
• Ships from Henderson, NV in about 4 days

What's in the Kit

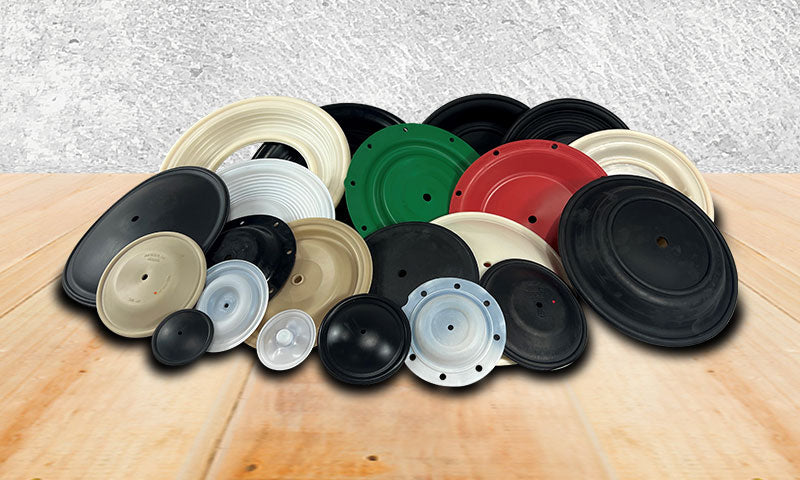

• 2 × Diaphragm, PTFE, Bolted (N15-1010-55-42)
• 2 × Back-Up Diaphragm, Neoprene (N15-1060-51)
• 4 × Valve Ball, PTFE (N15-1085-55)

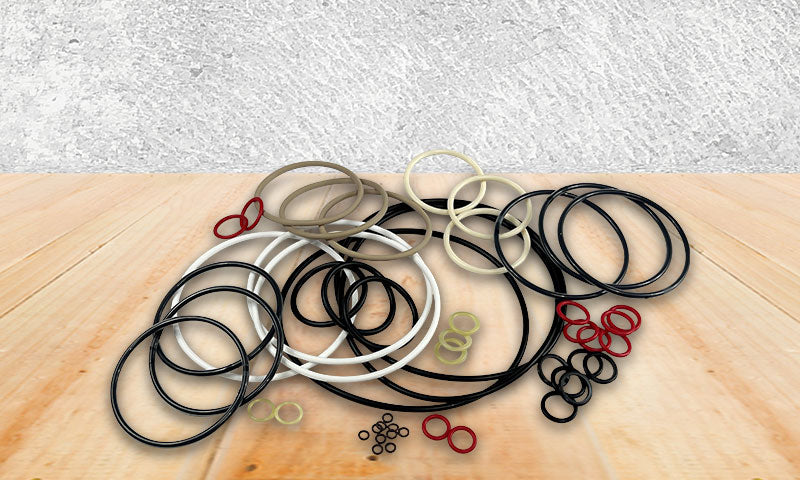

• 4 × T-Section O-Ring, Viton® Encapsulated, Poly, Bolted (N15-1300-60)
• 4 × Liquid Chamber O-Ring, Viton® Encapsulated, Poly, Bolted (N15-1370-60)
• 4 × Valve Seat O-Ring, Viton® Encapsulated, Poly, Clamped (N08-1200-60-500)

Compatible Pumps

• PWR-FLO NPF80W 3" polypropylene PTFE-fitted, bolted (80-120061-1)
• Also fits these NOMAD model numbers (NPT / BSP): 80-120061-1
• Wilden®: PS1500, P1500, PV1500, PX1500 plastic pumps (per JDA Global)
• Replaces: Wilden® 15-9815-55

Specifications

• MPN: N15-9815-55
• Kit type: Wet end elastomer kit
• Pump size: 3" (76 mm)
• Pump construction: Plastic
• Elastomer: PTFE
• PTFE temperature range: 40°F to 220°F (4.4°C to 104.4°C)
• Neoprene temperature range: 0°F to 200°F (-17.8°C to 93.3°C)
• Kit weight: 17.34 lb (sum of component weights)
• Manufacturer: NOMAD (JDA Global)
• Ships from: Henderson, NV

Frequently Asked Questions

Which pumps does the N15-9815-55 kit fit?
The NOMAD NPF80W (80-120061-1) pumps, and Wilden® PS1500, P1500, PV1500, PX1500 plastic pumps.

What is included?
2 × Diaphragm, PTFE, Bolted; 2 × Back-Up Diaphragm, Neoprene; 4 × Valve Ball, PTFE; 4 × T-Section O-Ring, Viton® Encapsulated, Poly, Bolted; 4 × Liquid Chamber O-Ring, Viton® Encapsulated, Poly, Bolted; 4 × Valve Seat O-Ring, Viton® Encapsulated, Poly, Clamped.

Is this a genuine Wilden® part?
No. It is a NOMAD after-market part made by JDA Global. NOMAD is not affiliated with Wilden®; Wilden® names and part numbers are used for identification only.

How long does it take to ship, and where does it ship from?
About 4 days, shipping from Henderson, NV.

Shipping and Warranty

• Manufacture Lead Time: 4 Days
• Ships From (State): NV

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Wilden® is a registered trademark of the Wilden Pump and Engineering Company. NOMAD® parts are not affiliated with Wilden®; names and part numbers are used for identification purposes only.
