NOMAD 1" Santoprene® Wet End Kit for Plastic Diaphragm Pumps, Fits Wilden® P200 & NOMAD NPF25 (MPN N02-9815-58)

Description

The NOMAD N02-9815-58 is a Santoprene® wet end elastomer kit for 1" plastic air-operated double diaphragm (AODD) pumps. It contains the 2 diaphragms, 4 balls, 4 seats and 8 O-rings/gaskets needed to rebuild the wetted side of one pump. It fits these NOMAD pumps sold by Tank Supply Direct: NPF25 (25-12691), and JDA Global lists it for Wilden® P200 plastic pumps.

NOMAD parts are made by JDA Global of Henderson, Nevada, as after-market replacements for NOMAD pumps and pumps from other manufacturers. The NOMAD part number follows the Wilden® numbering: N02-9815-58 corresponds to Wilden® kit 02-9815-58.

Key Features

• Complete wet end rebuild: 2 diaphragms, 4 balls, 4 seats, 8 O-rings/gaskets in one kit
• Santoprene® elastomers for 1" plastic pumps
• Matched to NOMAD NPF25: listed by JDA Global as the wet end kit for 25-12691
• Cross-references Wilden® 02-9815-58
• Ships from Henderson, NV in about 4 days

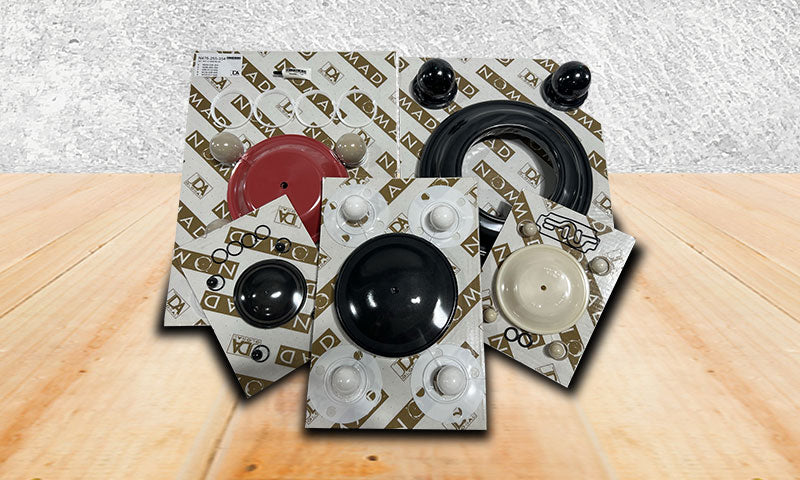

What's in the Kit

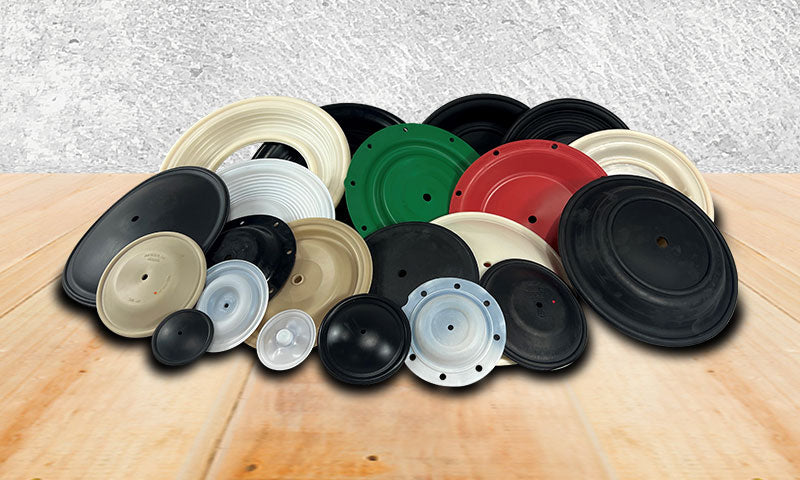

• 2 × Diaphragm, Santoprene® (N02-1010-58)

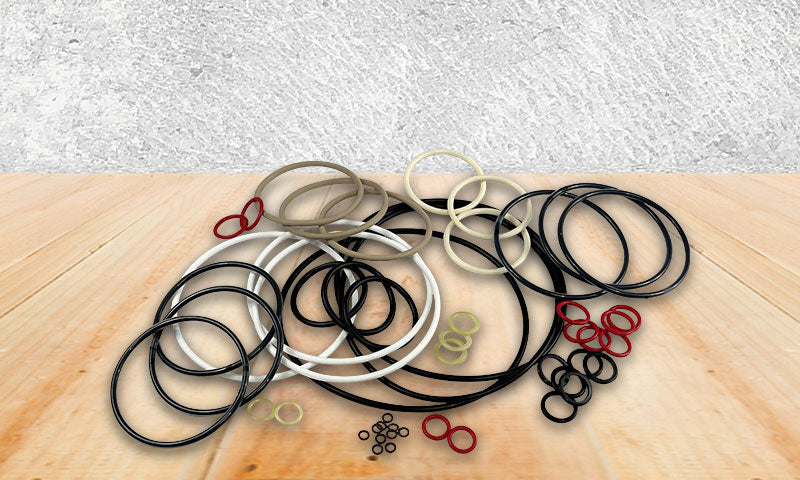

• 4 × Valve Seat O-Ring Viton® Encapsulated (N02-1220-60)
• 4 × T-Section O-Ring, Viton® Encapsulated, Poly Clamped (N04-1300-60-500)

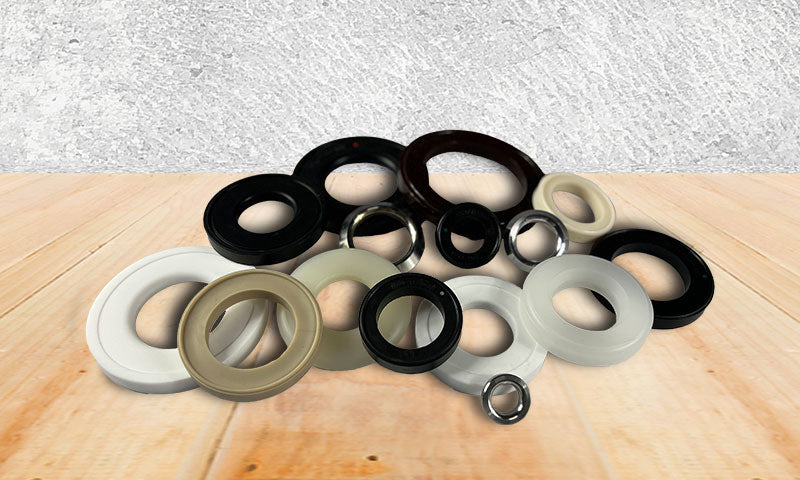

• 4 × Valve Seat, Polypropylene, Bolted (N02-1125-20)

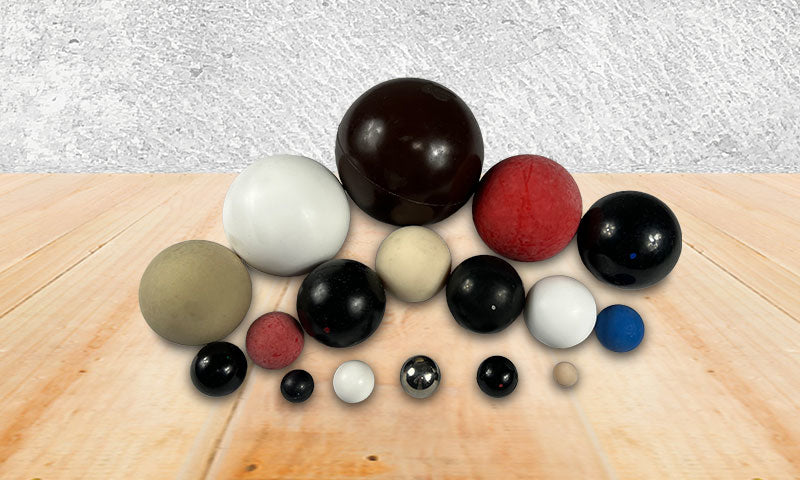

• 4 × Valve Ball, Santoprene®, Bolted (N02-1085-58)

Compatible Pumps

• PWR-FLO NPF25 1" side-ported polypropylene Santoprene-fitted, bolted (25-12691)
• Also fits these NOMAD model numbers (NPT / BSP): 25-125069-1, 25-12691
• Wilden®: P200 plastic pumps (per JDA Global)
• Replaces: Wilden® 02-9815-58

Specifications

• MPN: N02-9815-58
• Kit type: Wet end elastomer kit
• Pump size: 1" (25 mm)
• Pump construction: Plastic
• Elastomer: Santoprene®
• Santoprene® temperature range: -40°F to 225°F (-40°C to 107.2°C)
• Kit weight: 0.842 lb (sum of component weights)
• Manufacturer: NOMAD (JDA Global)
• Ships from: Henderson, NV

Frequently Asked Questions

Which pumps does the N02-9815-58 kit fit?
The NOMAD NPF25 (25-12691) pumps, and Wilden® P200 plastic pumps.

What is included?
2 × Diaphragm, Santoprene®; 4 × Valve Seat O-Ring Viton® Encapsulated; 4 × T-Section O-Ring, Viton® Encapsulated, Poly Clamped; 4 × Valve Seat, Polypropylene, Bolted; 4 × Valve Ball, Santoprene®, Bolted.

Is there a version with a different elastomer?
Yes. NOMAD N02-9815-55 is the PTFE wet end kit for the same pumps.

Is this a genuine Wilden® part?
No. It is a NOMAD after-market part made by JDA Global. NOMAD is not affiliated with Wilden®; Wilden® names and part numbers are used for identification only.

How long does it take to ship, and where does it ship from?
About 4 days, shipping from Henderson, NV.

Shipping and Warranty

• Manufacture Lead Time: 4 Days
• Ships From (State): NV

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Wilden® is a registered trademark of the Wilden Pump and Engineering Company. NOMAD® parts are not affiliated with Wilden®; names and part numbers are used for identification purposes only.
