NOMAD 1/4" PTFE Wet End Kit for Plastic Diaphragm Pumps, Fits Wilden® P.025 & NOMAD NPF07 (MPN N00-9552-55)

Description

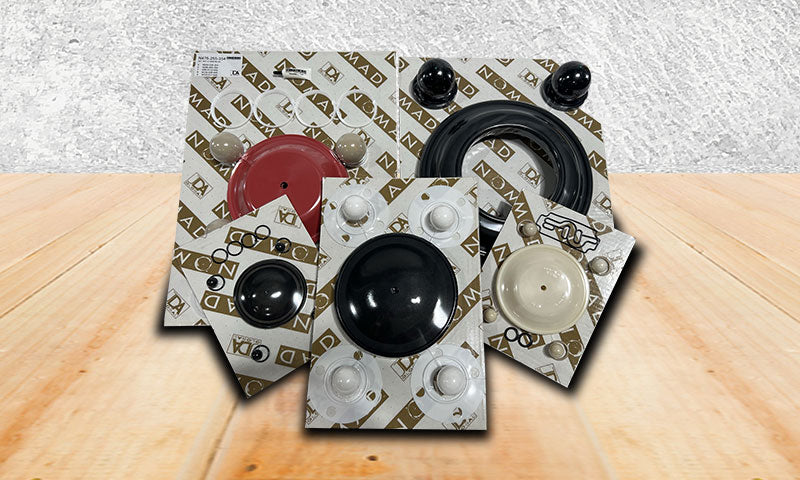

The NOMAD N00-9552-55 is a PTFE wet end elastomer kit for 1/4" plastic air-operated double diaphragm (AODD) pumps. It contains the 2 diaphragms, 2 back-ups, 4 balls and 15 O-rings/gaskets needed to rebuild the wetted side of one pump. It fits these NOMAD pumps sold by Tank Supply Direct: NPF07 (07-2261), and JDA Global lists it for Wilden® P.025 plastic pumps.

NOMAD parts are made by JDA Global of Henderson, Nevada, as after-market replacements for NOMAD pumps and pumps from other manufacturers.

Key Features

• Complete wet end rebuild: 2 diaphragms, 2 back-ups, 4 balls, 15 O-rings/gaskets in one kit
• PTFE elastomers for 1/4" plastic pumps
• Matched to NOMAD NPF07: listed by JDA Global as the wet end kit for 07-2261
• Ships from Henderson, NV in about 4 days

What's in the Kit

• 2 × Diaphragm, PTFE, Integral Piston, Primary (N00-1030-55)
• 2 × Back-Up O-Ring, Neoprene (N00-1070-51)

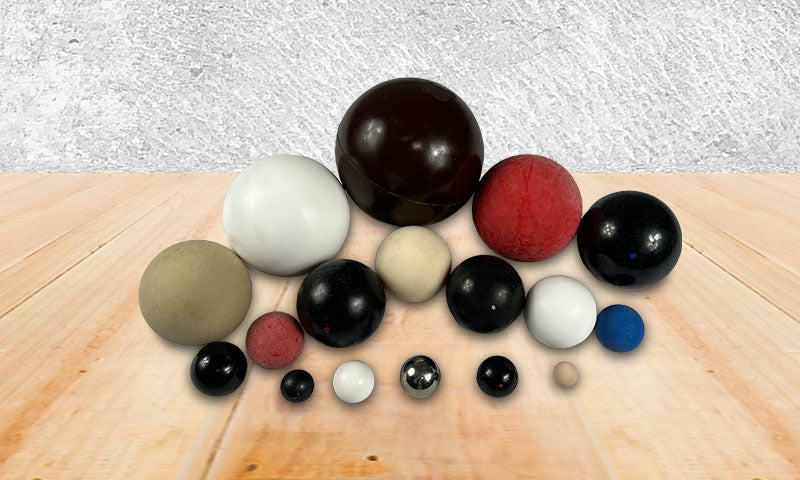

• 4 × Valve Ball, PTFE (N00-1080-55)

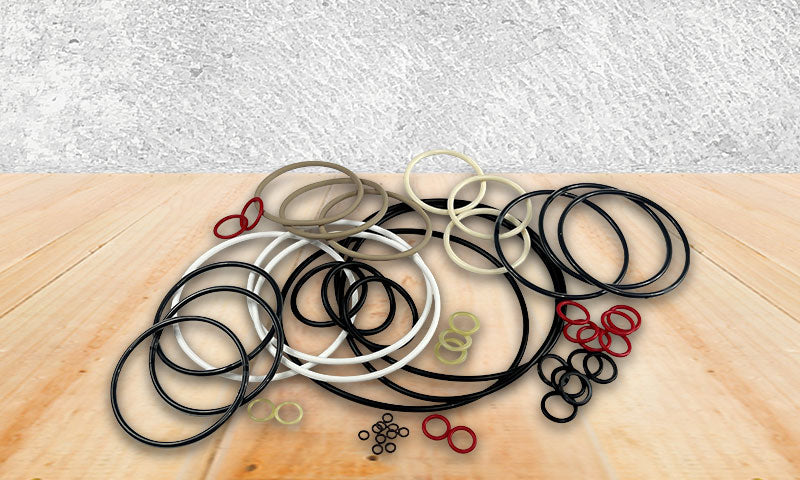

• 4 × Valve Seat O-Ring, Viton® Encapsulated (N00-1206-60)
• 4 × Valve Seat O-Ring, Viton® Encapsulated, Bolted (N01-1205-60)
• 4 × T-Section O-Ring, Viton® Encapsulated (N00-1300-60)
• 1 × Air Valve Gasket, Buna, PWR-FLO™ (N00-2600-52-700)

Compatible Pumps

• PWR-FLO NPF07 1/4" polypropylene PTFE-fitted, clamped (07-2261)
• Also fits these NOMAD model numbers (NPT / BSP): 07-2261
• Wilden®: P.025 plastic pumps (per JDA Global)

Specifications

• MPN: N00-9552-55
• Kit type: Wet end elastomer kit
• Pump size: 1/4" (6 mm)
• Pump construction: Plastic
• Elastomer: PTFE
• PTFE temperature range: 40°F to 220°F (4.4°C to 104.4°C)
• Neoprene temperature range: 0°F to 200°F (-17.8°C to 93.3°C)
• Kit weight: 0.248 lb (sum of component weights)
• Manufacturer: NOMAD (JDA Global)
• Ships from: Henderson, NV

Frequently Asked Questions

Which pumps does the N00-9552-55 kit fit?
The NOMAD NPF07 (07-2261) pumps, and Wilden® P.025 plastic pumps.

What is included?
2 × Diaphragm, PTFE, Integral Piston, Primary; 2 × Back-Up O-Ring, Neoprene; 4 × Valve Ball, PTFE; 4 × Valve Seat O-Ring, Viton® Encapsulated; 4 × Valve Seat O-Ring, Viton® Encapsulated, Bolted; 4 × T-Section O-Ring, Viton® Encapsulated; 1 × Air Valve Gasket, Buna, PWR-FLO™.

Is this a genuine Wilden® part?
No. It is a NOMAD after-market part made by JDA Global. NOMAD is not affiliated with Wilden®; Wilden® names and part numbers are used for identification only.

How long does it take to ship, and where does it ship from?
About 4 days, shipping from Henderson, NV.

Shipping and Warranty

• Manufacture Lead Time: 4 Days
• Ships From (State): NV

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Wilden® is a registered trademark of the Wilden Pump and Engineering Company. NOMAD® parts are not affiliated with Wilden®; names and part numbers are used for identification purposes only.
