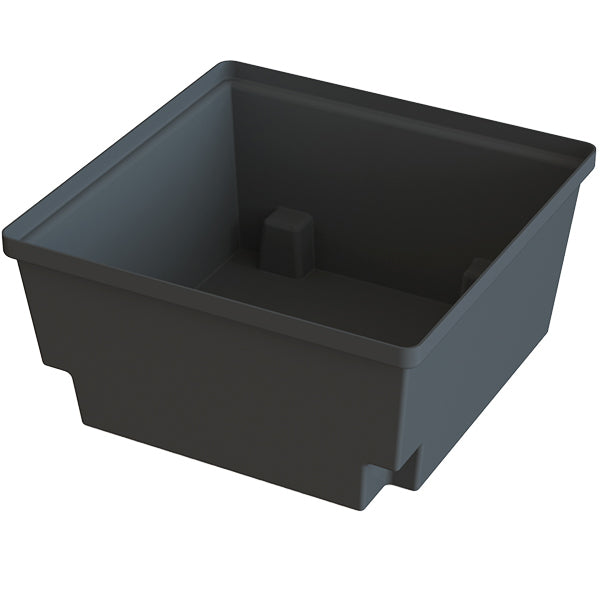

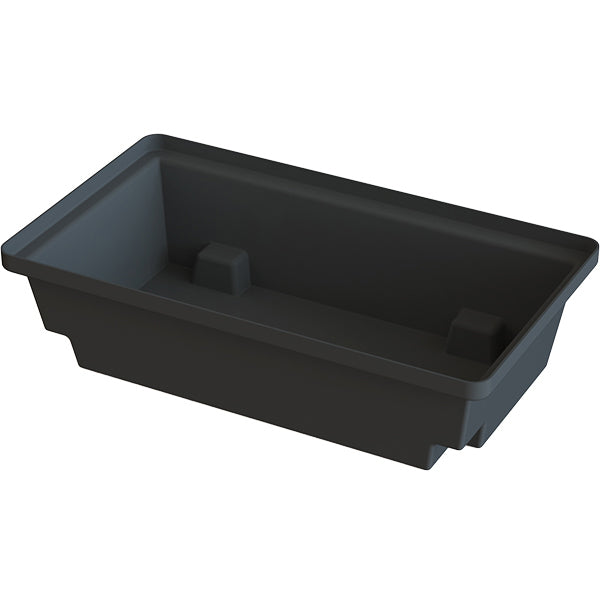

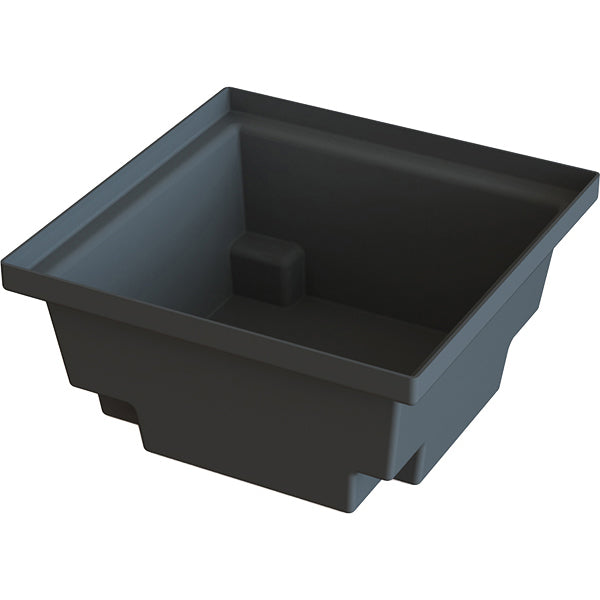

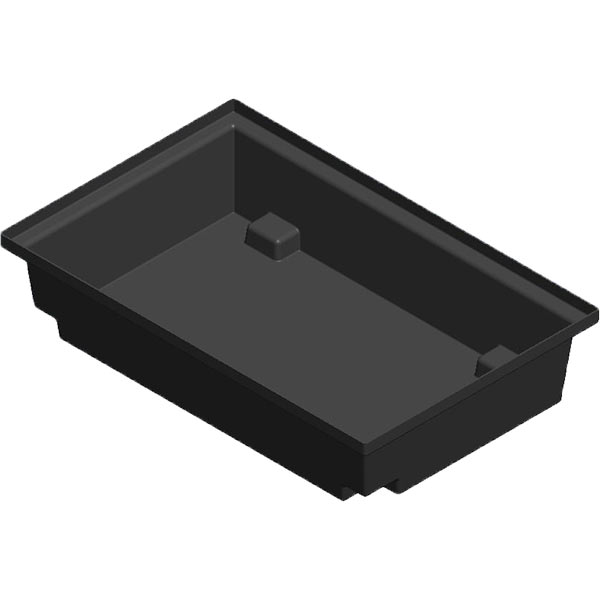

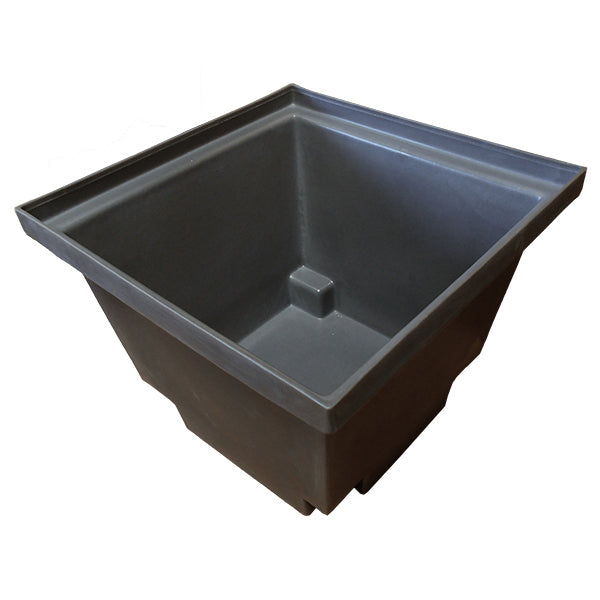

Peabody Engineering ProChem Containment Basins (33.5 to 1650 Gallon)

Description

Peabody Engineering ProChem containment basins sit under ProChem tanks to catch leaks and spills. Basins run from 33.5 to 1650 gallons, each sized to hold a specific tank, and are available as the basin only, the FRP grating only, or a basin and FRP grating kit.

Choose the basin by the tank it holds, then basin only, grating only, or the kit.

Key Features

• Sized to the Tank: Each basin lists the ProChem tank size it holds
• FRP Grating: Fiberglass grating available separately or as a kit
• Secondary Containment: Catches leaks and spills from the tank

Specifications

• Basin Sizes: 33.5 G: holds 25 gal tank, base 24” x 24”, top 31” x 31”, H 14” ; 33.5 G: holds 25 gal tank, base 23.25” x 23.25”, top 26” x 26”, H 14” ; 66 G: holds 40/50 gal tank, base 24” x 24”, top 34” x 34”, H 24” ; 67 G: holds (2x) 25/40//50 gal tank, base 24” x 48”, top 32” x 56”, H 14” ; 111 G: holds 75/100 gal tank, base 36” x 36”, top 42” x 42”, H 20” ; 120 G: holds (2x) 75/100 gal tank, base 36” x 60”, top 42” x 66”, H 13” ; 182 G: holds 125 gal tank, base 36” x 36”, top 45” x 45”, H 30” ; 220 G: holds 175/200 gal tank, base 40” x 40”, top 49” x 49”, H 30” ; 400 G: holds 265/300 gal tank, base 54” x 54”, top 62” x 62”, H 32” ; 825 G: holds 525 & 750 gal tank, base 60” x 60”, top 71” x 71”, H 50” ; 1100 G: holds 1000 gal tank, base 84.5” x 84.5”, top 89” x 89”, H 42” ; 1650 G: holds 1500 gal tank, base 84.5” x 84.5”, top 90” x 90”, H 61”
• Manufacturer Part Numbers: 33.5 G: 253-31629, 02-31826, 253-32903 (basin, grating, kit) ; 33.5 G: 253-35503, 02-35504, 253-35505 (basin, grating, kit) ; 66 G: 253-31630, 02-31826, 253-32904 (basin, grating, kit) ; 67 G: 253-31631, 02-31827, 253-32905 (basin, grating, kit) ; 111 G: 253-31632, 02-31828, 253-32906 (basin, grating, kit) ; 120 G: 253-31633, 02-31829, 253-32907 (basin, grating, kit) ; 182 G: 253-31695, 02-31828, 253-32908 (basin, grating, kit) ; 220 G: 253-31634, 02-31830, 253-32909 (basin, grating, kit) ; 400 G: 253-31635, 02-31831, 253-32910 (basin, grating, kit) ; 825 G: 253-33343, 02-33346, 253-33349 (basin, grating, kit) ; 1100 G: 253-33344, 02-33347, 253-33350 (basin, grating, kit) ; 1650 G: 253-33345, 02-33347, 253-33351 (basin, grating, kit)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Secondary containment for ProChem chemical tanks

Frequently Asked Questions

Which basin do I need?
Choose the basin that lists your tank size. The 67 and 120 gallon basins hold two tanks.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: ProChem Basins

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Peabody Engineering's published warranty is a full 3-year warranty on its standard tanks and a full 5-year warranty on its heavy-duty tanks, and it does not apply to special applications such as sodium hypochlorite and bio-diesel. Peabody does not state a separate warranty term for this item. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com. Source: Peabody Engineering FAQs
