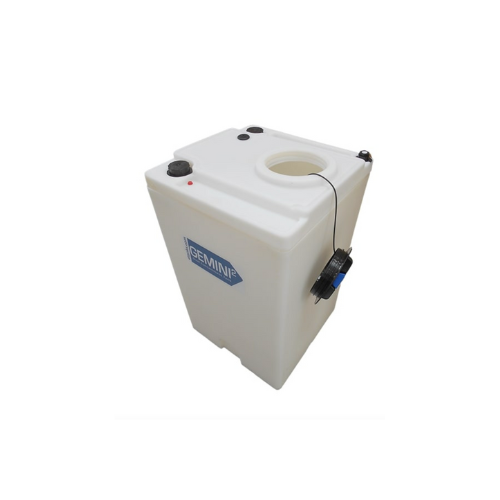

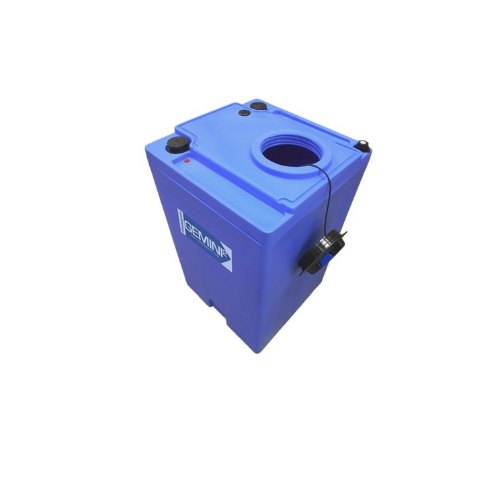

70 Gallon Peabody Engineering Gemini Square Dual Containment Tank 1.9 SG (MPN: 01-30068)

Description

The Peabody 70/85 Gallon Heavy Duty Double Wall Chemical Containment Tank (Part #30068) is an industrial-grade chemical storage solution engineered for commercial and industrial applications. Featuring 110-120% secondary containment, this double-walled tank ensures compliance with EPA 49 CFR regulations, making it a safe and efficient choice for hazardous and non-hazardous liquid storage.

The square footprint maximizes space efficiency by providing 22% more storage capacity per footprint than cylindrical models. Constructed from high-density linear polyethylene (HDPE) with UV inhibitors, this tank is highly durable, impact-resistant, and chemically compatible, making it suitable for both indoor and outdoor environments.

Key Features

• 70/85 Gallon Capacity (Inner/Outer Tank) – Optimized for industrial and agricultural chemical storage applications
• 110-120% Secondary Containment – Fully compliant with EPA 49 CFR regulations
• ANSI/CAN NSF-61 Certified – Approved for potable water and chemical storage
• High-Density Linear Polyethylene (HDPE) Construction – Durable, impact-resistant, and chemical-resistant
• UV-Inhibited Resin – Provides long-lasting protection against direct sunlight
• 1.9 Specific Gravity Rating (15.85 lb/gal) – Built for handling high-density and corrosive chemicals
• Seamless, Rotationally Molded Construction – Enhances durability and prevents leaks
• Compact Square Footprint – Provides 22% more storage capacity per footprint compared to cylindrical tanks
• Ships Fully Assembled – Saves time and labor costs on field installation
• Double-Wall Construction – Prevents contamination from precipitation and external debris

Specifications

• Part Number: 30068
• Manufacturer: Peabody

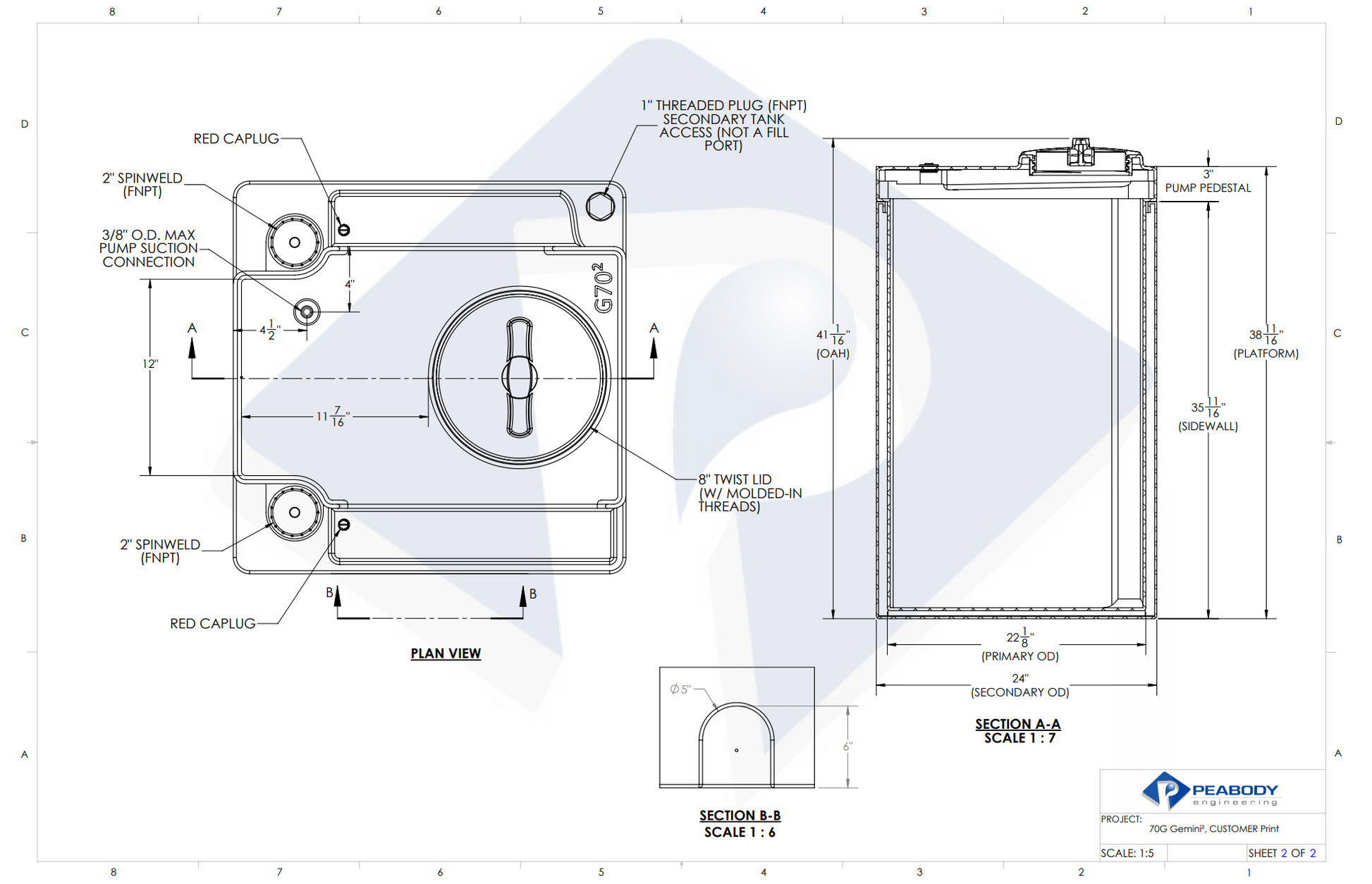

• Technical Drawing: Peabody 30068 Drawing
• Capacity: 70/85 gallons (inner/outer tank)
• Material: High-Density Linear Polyethylene with UV inhibitors
• Containment: 110-120% secondary containment
• Certification: ANSI/CAN NSF-61 Certified (Food Grade, Potable Water Approved)
• Specific Gravity Rating: 1.9 (15.85 lb/gal)
• Lid: 8-inch threaded lid for secure access
• Connections:
  • Inlet 1: 2" PP Female NPT Spinweld Fitting
  • Inlet 2: 2" PP Female NPT Spinweld Fitting
• Design: Square footprint for optimized storage capacity
• Color: Blue
• Translucent: No

Physical Features

• Product Type: Heavy Duty Double Wall Tank
• Tank Shape: Square
• Tank Usability: Stationary
• Environment: Above Ground
• Gallon Indicators: No
• Pressurized Use: No
• Forklift Channels: None

Shipping and Warranty

• Ships Fully Assembled – Reduces installation time and labor costs
• Nationwide Delivery Available – Securely packaged to prevent damage in transit
• Ships From: California (CA) and South Carolina (SC)
• Shipping Locations: Zip Codes 29657, 92879
• Warranty: Backed by Peabody’s manufacturer warranty for long-term reliability
• Dimensions: 24" Length x 24" Width x 41" Height
• Liquid Access: 2 Inlets, 1 Manway/Lid
• Weight / Ship Class: 141 lbs. / Ship Class 250
• Liftgate Option: No

Price Match Guarantee

At Tank Supply Direct, we are committed to offering the best prices on all Peabody double wall tanks. If you find a lower advertised price from a competitor, let us know—we will match it.

Order your Peabody 70/85 Gallon Heavy Duty Double Wall Chemical Containment Tank today for secure, compliant, and efficient chemical storage
